The graphic overlay is the primary point of interaction between a user and a machine. While often viewed as a simple faceplate, it is a sophisticated engineered component that must withstand UV exposure, chemical cleaning agents, and millions of actuations.

At Butler Technologies, Inc. (BTI), we approach graphic overlay manufacturing as a balance of aesthetic design and functional engineering. Whether for a medical ventilator or an industrial control panel, the choice of printing technique, surface finish, and subsurface layers dictates the product's longevity and user experience.

This guide explores the technical processes behind creating high-performance graphic overlays.

1. Printing Processes: Screen vs. Digital

The first engineering decision in overlay printing fabrication is selecting the print method between screen and digital printing. This choice is driven by design complexity, volume, and durability requirements.

Screen Printing: The Standard for Durability

Best for: High-volume production, exact color matching, and conductive inks.

Screen printing involves pushing ink through a mesh stencil onto the substrate (typically Polyester or Polycarbonate).

• Ink Thickness: Deposits a thick layer (10-20 microns), critical for creating opaque background colors that block internal light bleed.
• Specialty Inks: It is the only method capable of depositing functional inks, such as conductive silver for circuits or dielectric insulators.
• Precision: We utilize specific PMS (Pantone Matching System) formulas to ensure exact brand color consistency.

Digital Printing: The Solution for Gradients

Best for: Prototyping, low volumes, and complex multi-color designs.

Digital printing uses inkjet technology to apply UV-cured inks directly to the film.

• Design Freedom: Allows for photo-realistic images and infinite color gradients that screen printing cannot achieve.
• Variable Data: Ideal for serialized parts where every overlay needs a unique QR code or serial number.
• Speed: With zero tooling costs (no screens), digital printing is the fastest route to a prototype.

BTI Engineering Insight: We often employ a hybrid approach. We digitally print complex logos or gradients on the second surface, then screen print a heavy opaque white backing layer behind it to ensure the colors are vibrant and opaque.

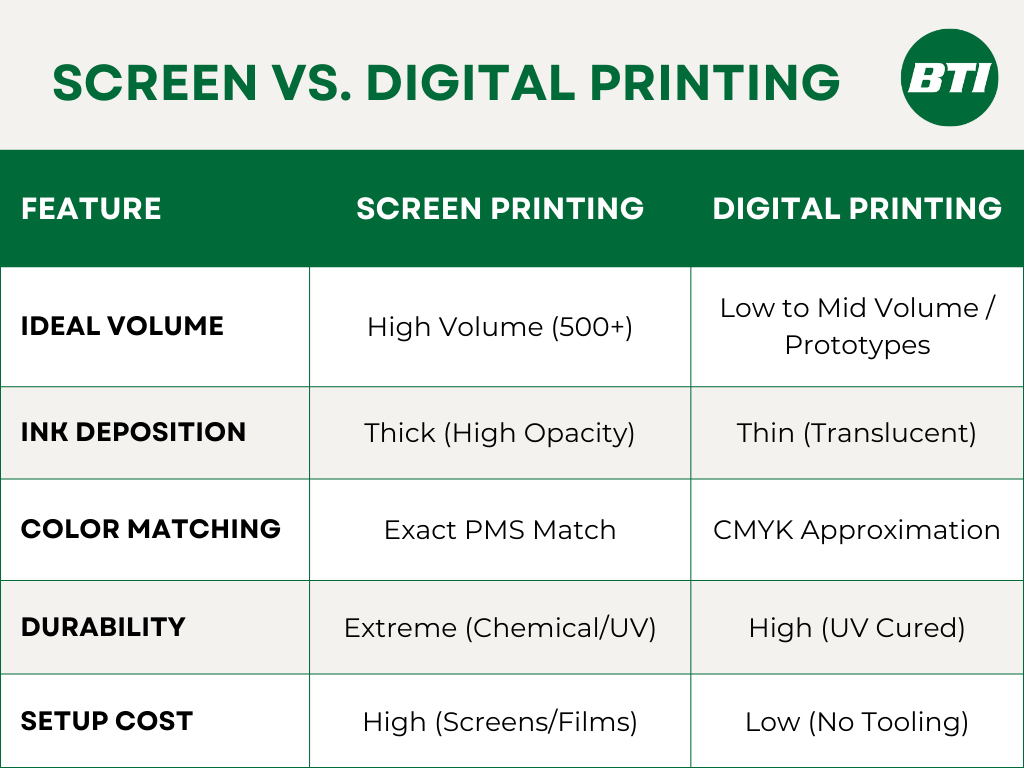

Comparison: Screen vs. Digital Printing

2. Surface Engineering: Finishes and Hard Coats

The top surface of an overlay controls glare, tactile feel, and abrasion resistance.

Hard Coats

Base materials like Polycarbonate are naturally soft. To prevent scratching, we apply a UV-cured hard coat.

• Function: Increases pencil hardness to prevent marring from cleaning cloths or fingernails.
• Chemical Resistance: Protects the substrate from aggressive hospital cleaners or industrial solvents.

Selective Texturing

Rather than coating the entire part, we can "selectively" screen print texture inks.

• Velvet/Matte: Applied to the control area to hide fingerprints and reduce glare.
• Gloss/Clear Windows: The texture is omitted (or a clear ink is used) over LED or LCD windows to maintain 100% optical clarity.

3. Functional Layers: Light Blocking and Adhesives

A graphic overlay is a multi-layer assembly. The layers beneath the ink are just as critical as the visible graphics.

What is Dead-Fronting?

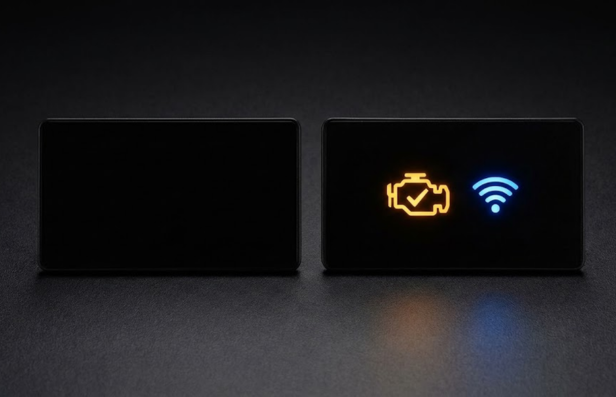

Dead-fronting is a printing technique where an icon remains invisible until backlit. We print a semi-translucent ink (usually grey or black) over a symbol. When the LED is off, the surface looks solid; when the LED turns on, the light punches through, revealing the icon. This is common in automotive dashboards and medical devices to declutter the interface.

Light-Blocking Layers

To prevent light bleed—where light from one LED spills into a neighboring icon—we print a "blocker" layer. This is typically a high-opacity black or silver ink printed on the rear of the overlay with precise cutouts for the LEDs.

Adhesive Selection

The rear of the overlay is coated with pressure-sensitive adhesive (PSA).

• Zoned Adhesive: We remove adhesive from window areas (to prevent clouding) and button areas (to prevent keys from sticking).
• 3M Standards: We typically specify 3M 467MP for smooth surfaces or 3M 300LSE for low-surface-energy plastics like powder-coated housings.

4. Embossing: Tactile Feedback

Embossing involves heat-pressing the plastic film to create raised areas, providing tactile guidance for the user.

• Rim Emboss: A raised border around the edge of the key.
• Pillow Emboss: The entire key surface is raised, often used over tactile metal domes to allow travel space.
• Hydroforming: For deeper draw heights or complex shapes, we use hydroforming rather than standard thermal embossing.

Engineer's Summary: The BTI Advantage

The graphic overlay is the face of your technology. It must be engineered to survive the environment while providing a clear, intuitive interface. By combining the durability of screen printing with the flexibility of digital imaging—and integrating functional features like dead-fronting and selective texturing—Butler Technologies creates overlays that elevate the value of the final product.

From material selection (PET vs. PC) to the final precision cut, our engineering team ensures that every layer serves a purpose.
