When developing components such as graphic overlays, membrane switches, flexible circuits, or wearable sensors, selecting the right printing method is critical. Two of the most common methods are screen printing and digital printing.

Both deliver high-quality results, but each offers unique strengths. This guide compares their differences across cost, speed, durability, design flexibility, and applications, helping engineers, designers, and product teams choose the right process for their project.

What Is Digital Printing?

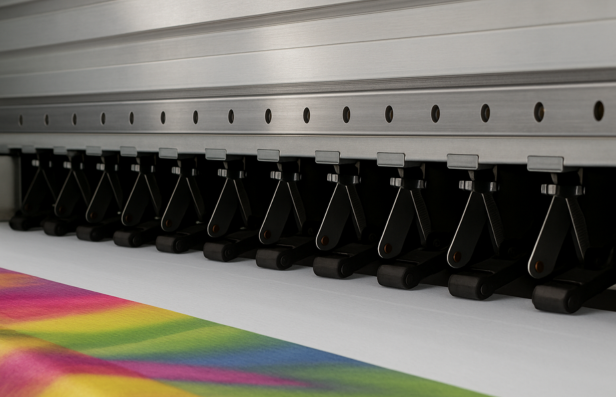

Digital printing transfers images directly from a computer file to the material using print heads that spray ink in precise droplets.

• No screens or setup tooling are required.
• Can print millions of colors, gradients, and photographic images in one pass.
• Offers fast turnaround and easy design changes.
• Suited for small to medium production runs, prototypes, or highly detailed designs.

At Butler Technologies, digital printing is often used for graphic overlays, labels, and complex designs that require fast delivery and customization.

What Is Screen Printing?

Screen printing is a traditional process where ink is pushed through a mesh stencil (screen) onto the material beneath.

• Each color requires a separate screen and printing pass.
• Produces thick, opaque layers of ink that are durable.
• Supports specialty inks such as metallics, fluorescents, and conductive inks.
• Ideal for high-volume projects and functional printed electronics.

Because of its ink thickness and versatility, screen printing is widely used for membrane switches, graphic overlays, sensors, and printed heaters.

Key Comparison Factors

1. Cost and Volume

• Digital printing: Cost-effective for small to medium runs, prototypes, or when frequent design changes are needed.
• Screen printing: More economical for high volumes once screens are created. Setup costs are higher, but per-unit costs drop significantly for large runs.

2. Speed and Lead Time

• Digital printing: Faster to set up, making it ideal for short lead times and quick-turn projects.
• Screen printing: Slower to prepare but very efficient for large, repeat runs once setup is complete.

3. Color and Design Complexity

• Digital printing: Handles gradients, multi-color artwork, and photographic detail with ease.
• Screen printing: Best for exact spot colors and specialty inks like metallics, fluorescents, and conductive inks.

4. Durability

• Digital printing: Inks are thinner but still durable, especially with UV-cured or laminated finishes.
• Screen printing: Deposits thicker ink layers, excellent for heavy use, outdoor exposure, or conductive applications.

5. Substrate Compatibility

• Screen printing: A process using a mesh screen and ink to print images or designs on a variety of substrates.
• Digital printing: Handles many flat and roll-fed materials but may have size or thickness limitations.

6. Design Flexibility

• Digital printing: Allows easy customization, variable data printing, and frequent design updates without added cost.
• Screen printing: Less flexible for design changes, but unmatched for applying tactile textures, raised inks, or special effects.

Real-World Applications

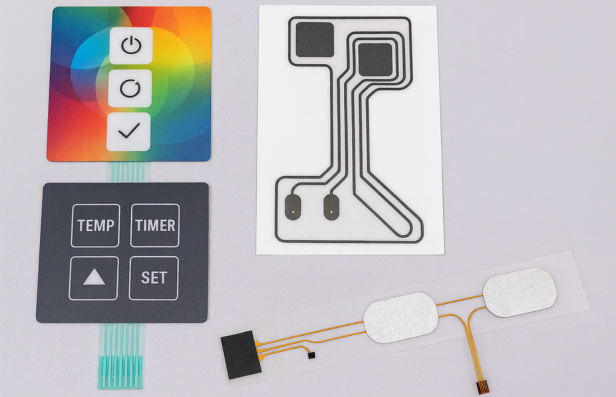

1. Graphic Overlays and Labels

• Digital printing: Ideal for graphic overlays with gradients, complex graphics, or small quantities.
• Screen printing: Preferred for overlays requiring spot colors, textured finishes, or special effects.
• Hybrid approach: Many manufacturers use both digital for detailed graphics, screen printing for protective coatings, or specialty inks.

2. Membrane Switches

• Digital printing: Used for complex or colorful overlay graphics of membrane switches when needed.
• Screen printing: Essential for conductive circuits using silver or carbon inks.
• Hybrid approach: Circuits are screen printed, and overlays can be either screen or digital, depending on design.

3. Flexible Printed Electronics

• Screen printing dominates: Conductive traces, resistors, heaters, and sensors require thick, functional inks that digital printing cannot provide.
• Digital printing: May support adjacent graphics but not the functional layers.

4. Wearable Sensors

• Screen printing: Prints stretchable conductive inks and biocompatible electrodes that withstand bending and washing.
• Digital printing: Adds branding or decorative graphics but not core functionality.

Making the Right Choice

Both digital and screen printing play vital roles in manufacturing printed components.

• Choose digital printing if you need short runs, fast turnaround, detailed artwork, or frequent design changes.
• Choose screen printing if you need high durability, special inks, functional layers, or large production volumes.
• Consider a hybrid approach when your project demands both detailed graphics and rugged functional layers.

At Butler Technologies, we offer both processes and often combine them to deliver the best results for customer projects. Whether you are developing medical devices, industrial controls, or wearable sensors, our team can help determine the most effective printing method for your application.

Frequently Asked Questions (FAQs)

1. Which is more durable, digital or screen printing?

Screen printing generally produces more durable prints because it lays down thicker ink layers, making it suitable for heavy use, outdoor conditions, or conductive applications. Digital printing can also be durable, especially with UV-cured inks or protective laminates, but it is better for moderate environments.

2. Is digital printing more expensive than screen printing?

For small to medium runs, digital printing is often more cost-effective since it avoids setup costs. For very large runs, screen printing becomes more economical because the upfront screen costs are spread over many units.

3. Can I use digital printing for membrane switches?

Yes, but only for the graphic overlay portion. The functional circuits in membrane switches require conductive inks that are best deposited through screen printing. Many designs use a hybrid method: screen printing for circuits, digital for the overlay graphics.

4. What if I need exact color matching?

Screen printing is better for exact Pantone color matches and specialty inks like metallics or fluorescents. Digital printing can reproduce millions of colors and gradients, but may struggle with some precise spot colors.

5. Which method is faster for prototypes?

Digital printing is faster for prototypes and short runs since it requires no screens or setup. You can move directly from a digital file to print.

6. Can digital and screen printing be combined?

Yes. Many projects benefit from a hybrid approach, for example, digital printing the full-color design of a graphic overlay and then screen printing a protective hard-coat or conductive element.
