Printed heaters are a modern thermal solution created using conductive inks instead of wires or coils. These thin, flexible heaters are ideal for applications where space, power efficiency, and customization are essential.

Used in industries like medical devices, automotive, and electronics, printed heaters are transforming product design.

What Is a Printed Heater?

For product engineers, understanding printed heaters is crucial to designing next-generation devices that require reliable, space-efficient heating. These components offer engineers a new level of control and integration flexibility that traditional heaters can't provide.

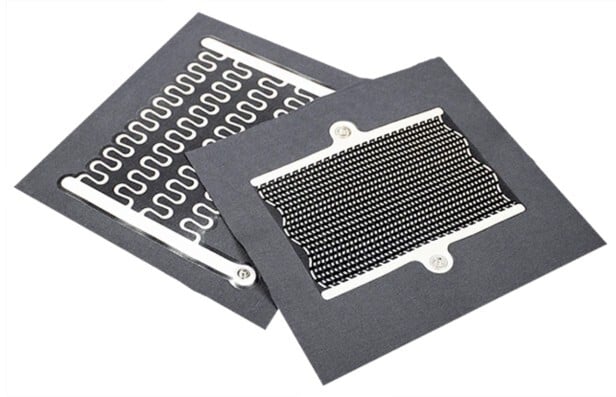

A printed heater is a low-profile heating element made by printing conductive and resistive inks onto flexible substrates like polyester or polyimide. When voltage is applied, the resistive ink generates heat. Unlike traditional heaters, these are light, customizable, and integrate well with compact devices.

Printed heaters fall under the category of printed electronics. Much like membrane switches or printed sensors, they are created layer by layer on flexible films, forming a heating circuit that can be tailored in size, shape, and resistance.

How Do Printed Heaters Work?

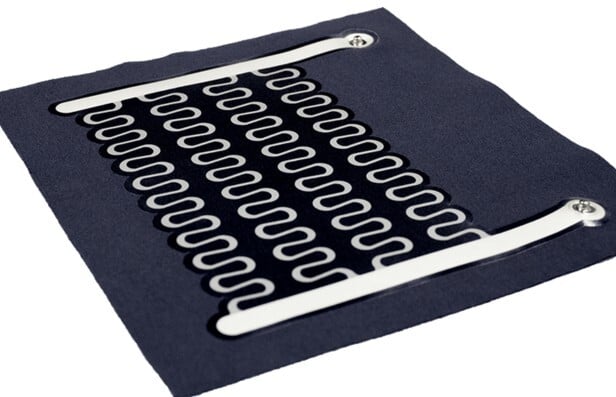

Printed heaters use the principle of resistive heating. Conductive silver traces carry current to resistive carbon inks, which convert electrical energy into heat. These patterns can be designed for uniform heat distribution.

Some flexible printed heaters use PTC (positive temperature coefficient) inks. These self-regulate by increasing resistance as they warm up, limiting the max temperature, and reducing the risk of overheating.

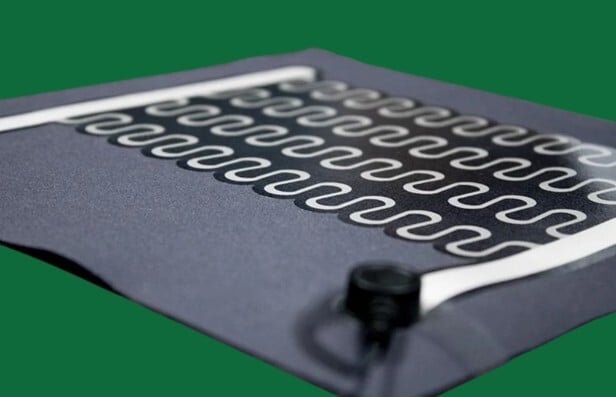

Construction of a Printed Heater

• Substrate

Printed heaters are built on flexible substrates such as PET (polyester), Kapton (polyimide), or TPU (thermoplastic polyurethane). Each material serves a unique role: PET offers affordability and flexibility for general use, Kapton excels in high-temperature environments, and TPU provides stretchability for wearables tech.

• Conductive Inks

Silver-based inks are typically used for the bus bars and interconnects. These inks have excellent conductivity, ensuring efficient current flow to the resistive elements. They form the backbone of the electrical path in the heater design.

• Resistive Inks

The heating function is achieved using carbon or PTC (positive temperature coefficient) inks. Carbon inks are chosen for their stable resistance and heat generation, while PTC blends provide self-regulating properties, making them ideal for safe, uniform heating.

• Cover Layer

A protective cover layer is often added to shield the printed traces from environmental factors. This layer may also include insulation or an adhesive backing, enabling easy application to surfaces or integration into other products.

• Connection Tabs

These are the points where the heater connects to a power source. Designed for easy attachment, connection tabs ensure reliable electrical contact and often integrate with flexible cables or connectors for seamless integration.

Despite having multiple layers, printed heaters remain extremely thin—often under 0.5 mm—and can be precisely die-cut into custom shapes for a perfect fit.

Benefits of Printed Heaters

1. Lightweight & Thin

Printed heaters add almost no bulk to a product. Their thin-film design makes them ideal for compact and portable applications.

2. Flexible

These heaters can conform to curves and surfaces, making them suitable for wearables and devices with complex geometries.

3. Customizable

Engineers can specify shape, resistance, and voltage levels to meet unique design requirements.

4. Uniform Heating

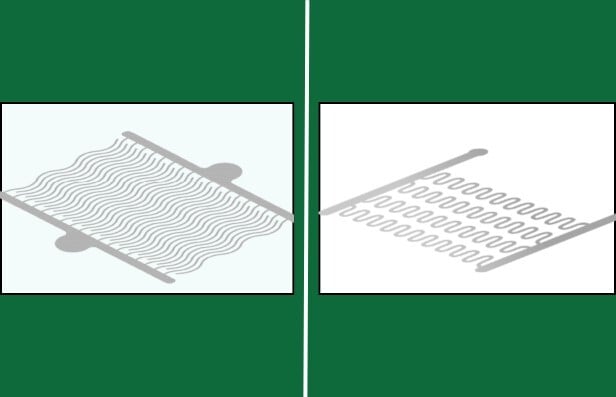

The heating patterns can be printed to ensure even heat distribution, avoiding hot spots.

5. Low Voltage

Printed heaters often operate on 12V or 24V DC, making them safe and energy-efficient.

6. Safe

PTC ink options provide self-regulating temperatures, enhancing safety and reducing the need for additional thermal control systems.

7. Durable

They are resistant to wear, moisture, and vibration, making them reliable in demanding environments.

Design Considerations for Product Engineers

1. Power & Resistance

Heaters must be designed to match the power supply and thermal output needs, using Ohm’s Law to calculate ideal resistance.

2. Material Selection

Choose PET for general use, Kapton for high-temperature applications, and TPU for flexible or wearable designs.

3. Integration

Plan the heater’s size, shape, and connection points early to ensure seamless integration into the final product.

4. Environment

Account for factors like moisture, washability, and chemical exposure to ensure performance and longevity.

5. Safety Standards

Ensure compliance with industry-specific regulations, especially for medical or wearable devices.

Common Applications

Printed heaters are widely used across different industries due to their adaptability and efficiency. Here are some of the most common applications:

• Medical Devices: Warming pads and neonatal blankets that require precise and consistent heat.
• Automotive: Seat warmers, steering wheel heaters, and other comfort enhancements.
• Consumer Electronics: Devices like battery warmers and defogging elements for screens and displays.
• Industrial: Applications such as food delivery bags and preheating systems for fluids.
• Wearables: Heated jackets, gloves, and insoles for personal comfort.

Emerging Trends

The technology behind printed heaters continues to evolve, opening new opportunities for innovation:

• Stretchable Heaters: Designed for dynamic environments and flexible wearables.
• Transparent Films: Useful in screens and windows where visibility and heat are both required.
• Smart Integration: Combining heating elements with embedded sensors for responsive control

Engineering Insight for Product Engineers

Printed heaters offer product engineers unmatched design flexibility and efficiency. They support innovation across industries by enabling heating in places traditional heaters can’t reach. With their integration into wearables, medical devices, and automotive interiors, printed heaters are paving the way for smarter, more user-friendly products.

For engineers and developers looking to enhance product functionality without adding bulk, printed heaters present an ideal thermal management solution worth integrating into their designs.
