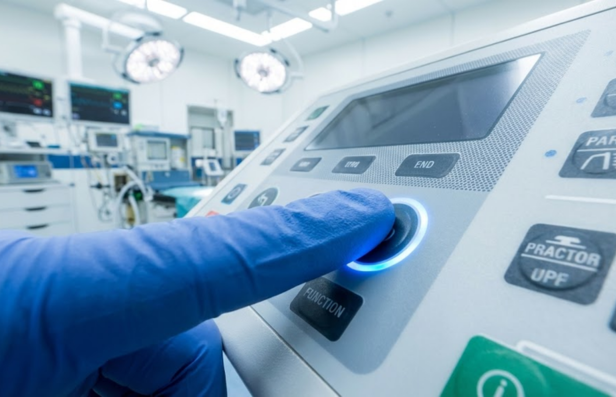

When an operator presses a button on a dialysis machine or a pilot engages a secondary control, they aren't just closing an electrical circuit. They are expecting a confirmation.
In the realm of Human-Machine Interface (HMI) design, that confirmation is called tactile feedback. It is the physical "snap," "click," or resistance that tells the user's brain: "Message received. Action initiated."
Without this feedback, uncertainty creeps in. Did I press it hard enough? Do I need to press it again? In high-stakes environments like medical operating rooms or industrial floors, that uncertainty is unacceptable.
At the heart of this tactile experience in membrane switches is a small, often overlooked component: the dome.
The choice of dome technology determines not only how a product feels but also its reliability, longevity, and cost. This guide breaks down the engineering realities of membrane switch domes and how to select the right feedback mechanism for your user.
Why Haptics Matter in HMI Design
Before diving into the hardware, it is crucial to understand the "why."
A membrane switch in its simplest form, two conductive layers separated by a spacer, is inherently "non-tactile." Pressing it feels like pushing against a flat, dead surface. While functional, it relies entirely on visual (LEDs or screens) or auditory (beeps) cues to confirm activation.
Integrating a dome changes the switch from a passive surface to an active interface.
- Safety and Confidence: In noisy industrial environments or stressful medical situations, auditory cues can be missed. The physical snap of a dome provides unmistakable confirmation that the switch has actuated, reducing duplicate presses or missed commands.
- Perceived Quality: A crisp, consistent tactile snap is subconsciously associated with high-quality engineering. A mushy or inconsistent button feel can make an expensive device feel cheap.
- Muscle Memory: Tactile feedback helps operators develop muscle memory, allowing them to locate and activate controls without taking their eyes off their primary task.
To better understand how tactile and non-tactile designs compare in practical applications, explore our guide on tactile vs non-tactile membrane switches.
The Two Main Contenders: Metal vs. Polydomes
When engineering tactile feedback into a membrane switch, there are two primary paths: Metal domes (stainless steel) and Polydomes (embossed polyester).
1. Metal Domes: The Gold Standard for Reliability
A metal dome is a discrete component, typically made of high-grade stainless steel, placed between the graphic overlay and the top circuit layer. When pressed, the dome collapses, snapping down to bridge the gap between circuit traces. Upon release, it springs back to its original shape.
The Engineering Advantages:
- The "Crisp" Feel (High Snap Ratio): Metal domes offer the sharpest tactile response. They have a distinct trip point and a rapid collapse, providing that satisfying "click" users associate with precision equipment.
- Extreme Durability: Stainless steel is incredibly resilient. Standard metal domes are rated for 1 million to 5 million cycles, making them essential for high-use applications.
- Temperature Stability: Metal maintains its mechanical properties across a wide temperature range, ensuring a consistent feel in freezing outdoor conditions or hot industrial settings.
The Trade-offs:
Metal domes are separate components that must be placed during assembly using automated pick-and-place equipment. This adds a step to the manufacturing process, modestly increasing the unit cost compared to polydomes.
2. Polydomes: The Integrated Alternative

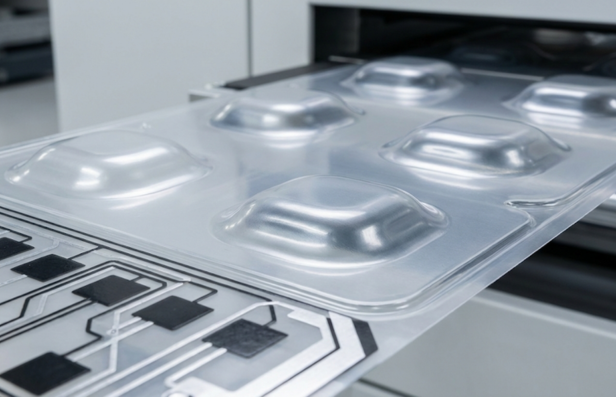

A Polydome is not a separate part. It is formed directly into the substrate (usually the polyester graphic overlay or the top circuit layer) using heat- and pressure-embossing tools.
The Engineering Advantages:
- Cost Efficiency: Because the dome is part of existing layers, there are no extra component costs or pick-and-place assembly steps. This makes Polydomes attractive for high-volume, cost-sensitive BOMs.
- Softer Actuation: Polydomes generally have a softer, slightly "mushier" feel and a lower snap ratio than metal domes. While less crisp, some consumer applications prefer this gentler touch.
- Lower Profile: Since there is no added metal component, polydome switches can be marginally thinner.
The Trade-offs:
- Lower Cycle Life: Polymers fatigue faster than steel. Polydomes are typically rated for 100,000 to 500,000 cycles.
- Temperature Sensitivity: Polyester can soften in high heat or become brittle in extreme cold, altering the actuation force and tactile feel of the button.

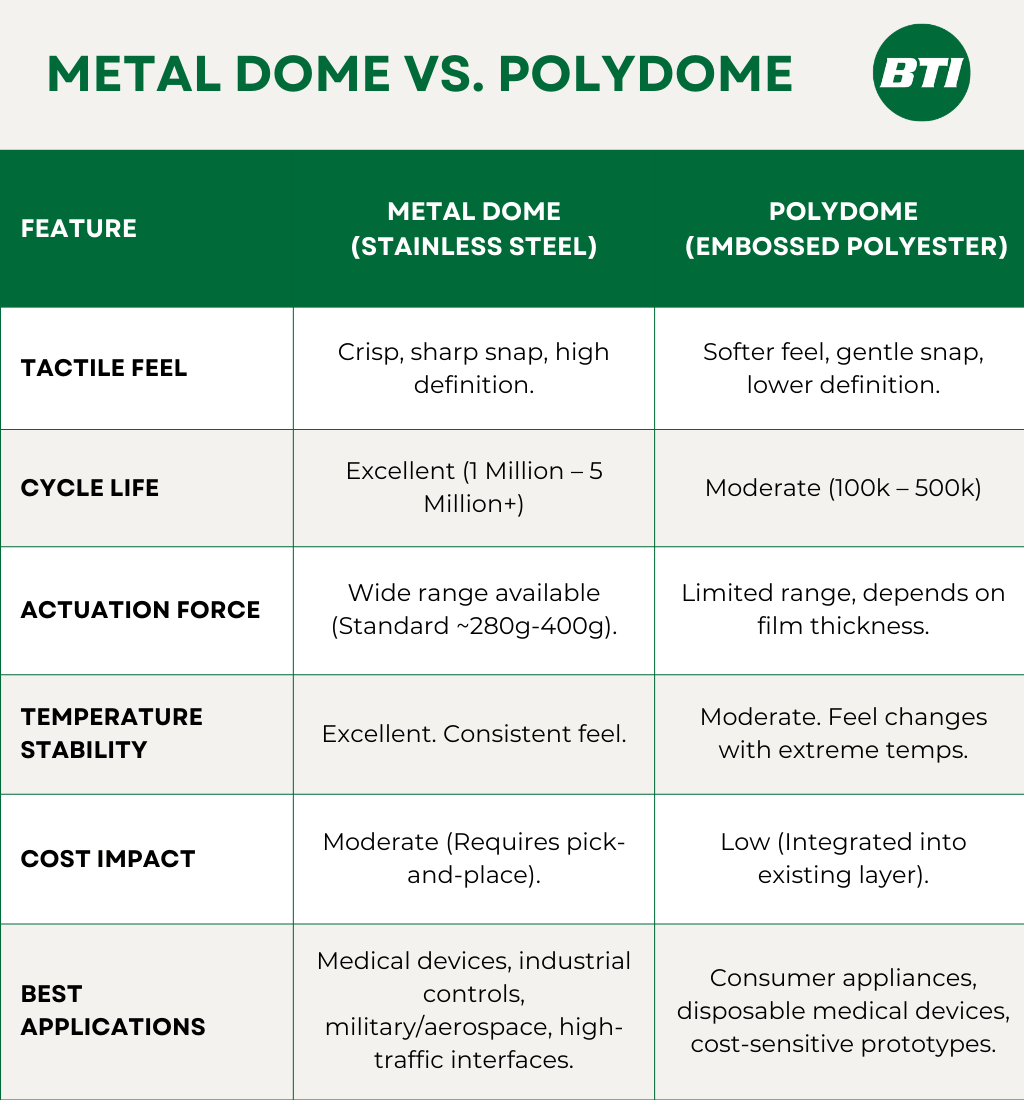

The Engineering Decision Matrix
Choosing the right dome isn't about preference; it's about matching performance characteristics to the application's environment and lifecycle requirements.
While dome selection is critical, it is only one part of the overall switch architecture. The performance of a metal or polydome is directly influenced by how it integrates with the overlay, spacer, and circuit layers.
For a deeper understanding of how these elements work together in a complete assembly, our detailed explanation of membrane switch components and layers outlines how each structural element influences reliability and tactile response.
Defining Your User's Experience
The difference between a successful product and a frustrating one often comes down to the details of the user interaction. A surgeon needs the absolute certainty of a metal dome snap; a user setting a microwave timer might be perfectly served by a Polydome.
At Butler Technologies, we don't just manufacture switches; we engineer the tactile experience. We help you define the required actuation force, snap ratio, and life cycle to ensure your HMI matches the quality of your entire device.
If you are unsure which feedback mechanism is right for your next project, let our engineering team review your requirements. We can provide samples allowing you to physically feel the difference between metal and polydome technologies before you commit to tooling.
Start your tactile engineering consultation with BTI today.
