Industrial automation is moving towards modular, flexible interfaces that can adapt to changing needs. In this context, graphic overlays – printed, durable films placed atop control panels or displays – have become crucial components. An overlay is typically a thin polyester or polycarbonate sheet printed with buttons, icons, and instructions.

Applied over electronics, it provides a sealed, easy-to-read interface that protects the device from dust, moisture, and wear. These overlays guide the operator with clear labels and help extend equipment life by guarding circuitry against harsh conditions.

What Are Graphic Overlays?

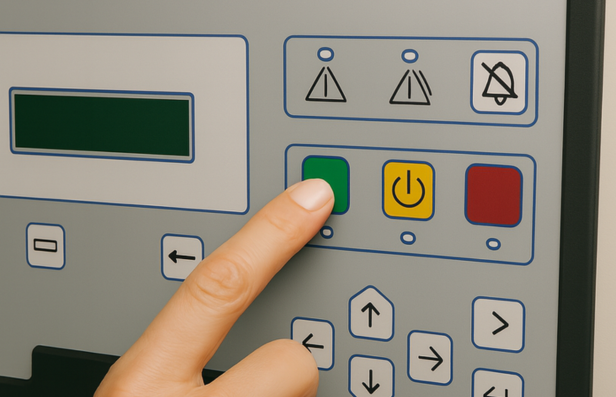

A graphic overlay (or control panel overlay) is the topmost layer of an industrial interface. It is usually made from a robust plastic film (polyester or polycarbonate) printed with custom artwork – button graphics, indicator legends, logos, and instructions. Once affixed to the device, the overlay becomes the user-facing interface. By definition, it helps guide the user in operating the equipment efficiently and safely while also improving the product’s durability.

In practice, overlays often include transparent windows for displays or LEDs, tactile embossing for touch-feedback, and backlighting features to highlight controls. High-quality overlays meet industrial standards (MIL-SPEC, IP65, etc.) and can incorporate anti-scratch, UV-resistant, or anti-microbial coatings for added robustness.

The Rise of Modular Industrial Interfaces

Modern manufacturing and process systems are trending toward modular HMI designs. Instead of one monolithic machine, companies use interchangeable modules and “plug-and-play” components to build customized equipment faster.

In controls and HMIs (human-machine interfaces), this means separating hardware into distinct units (compute boards, touchscreens, I/O modules) that can be mixed and matched.

Modular HMIs allow engineers to upgrade or reconfigure one part without replacing the entire panel. For example, modular HMI design separates the compute module from the display, allowing for flexible configuration and easy maintenance.

Integrators can mix and match processing boards with standard touchscreen enclosures based on application needs. The result is a scalable system where additional processing power or new features can be added by swapping in a module – all while keeping the existing physical interface intact.

This architecture directly supports Industry 4.0 goals by enabling upgradability, reduced downtime, and long system lifecycles.

How Graphic Overlays Enable Modularity

Graphic overlays play a key role in making these modular interfaces practical and user-friendly. By using custom overlays, each module can have its own unique interface without redesigning hardware. Key advantages include:

• Customizability: A standard display module can serve multiple functions simply by changing the overlay art. Engineers can quickly attach new custom graphic overlays for different operations or products.
• Brand Consistency: Overlays can be printed with company logos, color schemes, and unified styling. This ensures that even as hardware modules are swapped, the operator sees a consistent brand and layout.
• Physical Protection: Modular interfaces often use rugged, standardized touchscreens or bezels. Graphic overlays form a protective shell on top of these components, guarding sensitive parts from dust, spills, and abrasion. Damaged or outdated overlays can be peeled off and replaced without touching the electronics beneath.
• Enhanced Usability: Overlays can incorporate tactile features (embossed buttons, textured zones) and cutouts for lights or displays to tailor each module’s interface. Backlighting or selective printing can highlight critical controls on each module.
• Cost Efficiency: It is far cheaper and faster to produce and attach a printed overlay than to redesign a whole panel or housing. When product variants require different control layouts, companies save money by swapping artwork instead of custom-machining metal panels.

Benefits of Graphic Overlays in Industrial Interfaces

Whether modular or not, graphic overlays bring significant benefits to industrial HMIs:

• Robust Durability: Overlays shield machinery from wear, abrasion, chemicals, and extreme conditions. They prevent dust and liquids from reaching the electronics, prolonging device life.
• Easy Maintenance and Cleaning: A smooth overlay is simple to sanitize. Unlike knobs or gaps, it has no seams where dirt can lodge. This is crucial in harsh environments like foundries, food processing, and hospitals.
• Enhanced User Experience: High-resolution printing and design flexibility improve usability. Overlays can use vivid colors, large fonts, and iconography to make controls intuitive. Tactile cues like embossed buttons and backlighting help operators in low-light conditions or while wearing gloves.
• Scalability: Manufacturers can scale products more efficiently by customizing overlays. A single base model can spawn multiple variants simply by changing the graphics.
• Cost Savings: A printed overlay and adhesive backing are often cheaper than alternative panel solutions. Their durability also reduces long-term maintenance expenses.

Applications & Future Trends

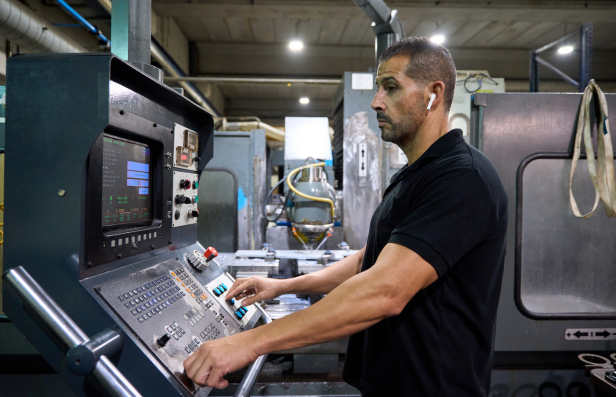

Graphic overlays are already common in industrial settings: control panels on factory floors, rugged vehicle dashboards, medical equipment, and consumer appliances. In automotive and aerospace, overlays must withstand UV, vibration, and extreme temperatures, while in medical devices, they endure disinfectants and sterilization.

Looking ahead, Industry 4.0 and IoT will only amplify the need for modular HMIs. As systems become more data-driven and decentralized, manufacturers want displays and controllers that can be quickly reconfigured. Graphic overlays fit this need perfectly: they let field technicians retrofit new interfaces on existing hardware without rewiring or recertifying the device.

Future innovations such as flexible printed sensors and conductive inks may make overlays even more versatile. For now, their ability to combine durability with design flexibility is a driving force behind the shift to plug-and-play industrial interfaces.

Frequently Asked Questions

Q1. What is a graphic overlay in industrial design?

A graphic overlay is the top printed layer of an industrial interface, typically made from polyester or polycarbonate. It displays symbols, instructions, and branding while protecting the underlying electronics.

Q2. How do custom graphic overlays benefit modular industrial interfaces?

Custom graphic overlays allow manufacturers to adapt a single base hardware module for different functions. By simply changing the overlay, companies can customize layouts, improve usability, and maintain brand consistency.

Q3. Why are graphic overlays important for industrial human-machine interfaces?

Graphic overlays enhance durability, user experience, and clarity in industrial human-machine interfaces. They also protect against dust, moisture, and wear, making HMIs more reliable in harsh environments.

Q4. What materials are used to make graphic overlays?

Most overlays are made from polyester or polycarbonate films. These materials are durable, flexible, and can withstand abrasion, chemicals, UV exposure, and extreme temperatures.

Q5. Can graphic overlays be backlit or embossed?

Yes. Graphic overlays can be designed with backlighting for better visibility and embossed buttons for tactile feedback, improving usability in industrial applications.

Q6. Are graphic overlays cost-effective for manufacturers?

Absolutely. Instead of redesigning entire panels, manufacturers can simply replace overlays to accommodate new functions or branding, which lowers production costs and speeds up customization.

Q7. What industries commonly use graphic overlays?

Graphic overlays are widely used in industrial automation, medical devices, aerospace, automotive, consumer electronics, and any application that requires durable, intuitive interfaces.
