Graphic overlays are essential interface components that shape how users interact with a device. Far beyond simple labels, these engineered layers provide visual clarity, protect underlying electronics, and support the functional requirements of industrial, medical, and consumer products. When designed correctly, a graphic overlay improves usability, enhances durability, and reinforces brand identity.
This guide breaks down the materials, finishes, and performance features that define high-quality custom overlays, helping engineers and product teams choose the right construction for demanding real-world environments.
What Is a Graphic Overlay?
Custom graphic overlays are thin printed layers used to decorate devices and convey user information. Butler Technologies, Inc. (BTI), a leading overlay and label manufacturer, defines a graphic overlay as a decorative and informative design printed on a thin sheet of material attached to the surface of a product.
Graphic overlays serve two main purposes:
- As a decorative veneer displaying branding or instructions, like logos and labels.
- As a functional interface layer, it is often the top layer of a membrane switch, guiding user input.
They are also referred to as nameplates, faceplates, stickers, labels, or decals and are commonly used in electronics, appliances, industrial controls, and medical devices.
Common Materials for Custom Graphic Overlays
1. Polycarbonate (PC):
- High optical clarity
- Easy to die-cut and form
- Scratch-resistant with coating
- Ideal for indoor use and aesthetic interfaces
2. Polyester (PET):
- Superior chemical, abrasion, and UV resistance
- Preferred for harsh environments
- Higher actuation life
- Common in membrane switches and medical devices
For a detailed breakdown of material performance, durability, and ideal use cases, explore this detailed comparison of PC vs PET for graphic overlays.
3. Vinyl:
- Cost-effective and flexible
- Best for short-term, indoor labels
- Moderate durability
4. PVC:
- Mid-range material with formability
- Accepts a variety of finishes
- Suitable for moderate-use products
BTI helps clients select the right material based on durability, environmental considerations, clarity, and tactile needs.
Surface Finishes and Appearance
Overlays can be customized with different surface finishes for appearance and usability:
- Matte (Anti-glare): Reduces reflections, ideal for screen applications
- Gloss: Shiny, polished look, enhances clarity
- Velvet/Brushed Texture: Premium feel, hides fingerprints
- Selective Texture: Applies different textures to specific zones

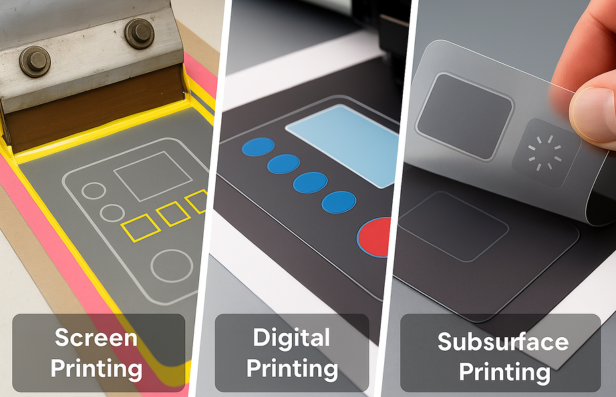

Custom Graphic Overlay Printing
Overlays are typically printed using one of two methods:
1. Screen Printing:
- Best for bold, durable graphics
- Ideal for limited colors and high-volume runs
- UV-cured inks for abrasion resistance
2. Digital Printing:
- Allows full-color images, gradients, and personalization
- Great for short runs and prototype iterations
To understand when the two methods mentioned above perform best, read our full comparison of Digital vs Screen printing.
3. Subsurface Printing:
- Ink is printed on the underside of a clear layer
- Prevents wear and protects graphics from cleaning agents
BTI uses advanced color-matching techniques (Pantone, RAL, and Mansel) to ensure brand consistency.
Functional Features and Add-ons
Custom graphic overlays are more than decorative; they often include engineered functionality:

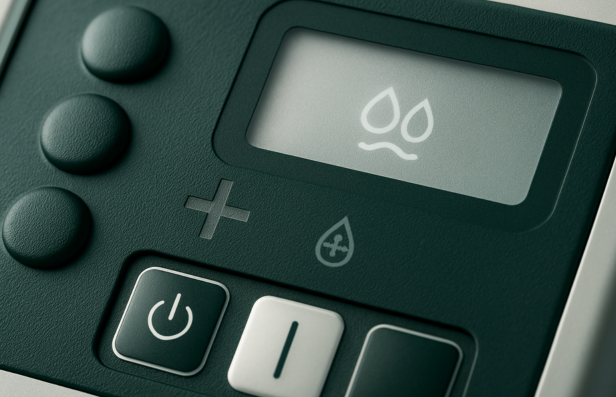

- Embossed Buttons: Raised keys or symbols provide tactile feedback

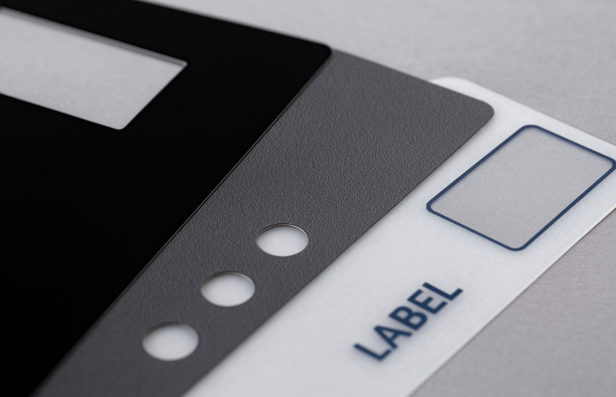

- Windows and Cutouts: Transparent or open sections for LEDs, screens, gauges
- Dead-Front Graphics: Hidden icons appear only when backlit
- Backlighting Integration: Use of LEDs or light-guide films for low-light environments
- Overlay Pockets: For interchangeable labels, serial numbers, or instructions
Adhesive Backing Options
Selecting the right adhesive ensures overlays stay in place and withstand conditions:
- 3M 467/468: Standard pressure-sensitive adhesives
- 3M 300LSE: Stronger adhesion for low-energy plastics
- Custom adhesives based on surface type, temperature, and exposure
Applications of Custom Graphic Overlay Labels
- Consumer electronics and appliance interfaces
- Industrial control systems
- Medical equipment
- Automotive dashboards and HVAC systems
- Fitness and wearable electronics
Why Choose Butler Technologies, Inc.?
Butler Technologies, Inc. is a trusted name in custom graphic overlay printing and manufacturing. With in-house design, screen, and digital printing, and decades of experience in printed electronics, BTI provides:
- Precise color-matching and branding alignment
- High-durability finishes and material guidance
- Prototyping and large-scale production under one roof
- Functional integration with membrane switches and backlighting
Summary
Custom graphic overlays are critical components that enhance user experience, durability, and product branding. Whether for aesthetics or tactile interface design, choosing the right materials, finishes, and features makes all the difference. Work with a reliable graphic overlay manufacturer, such as Butler Technologies Inc., to ensure your overlays meet every requirement, from appearance to function.
