Touch screens have become a standard interface in everything from smartphones and tablets to ATMs and industrial control panels. But not all touch screens are the same – two dominant technologies power most touch interfaces: resistive touch screens and capacitive touch screens.

Each type of touch screen has unique advantages and limitations, making one or the other more suitable depending on your application. In this blog, we’ll explore what capacitive and resistive touch screens are, how they work, and key differences to help you decide which technology fits your needs best.

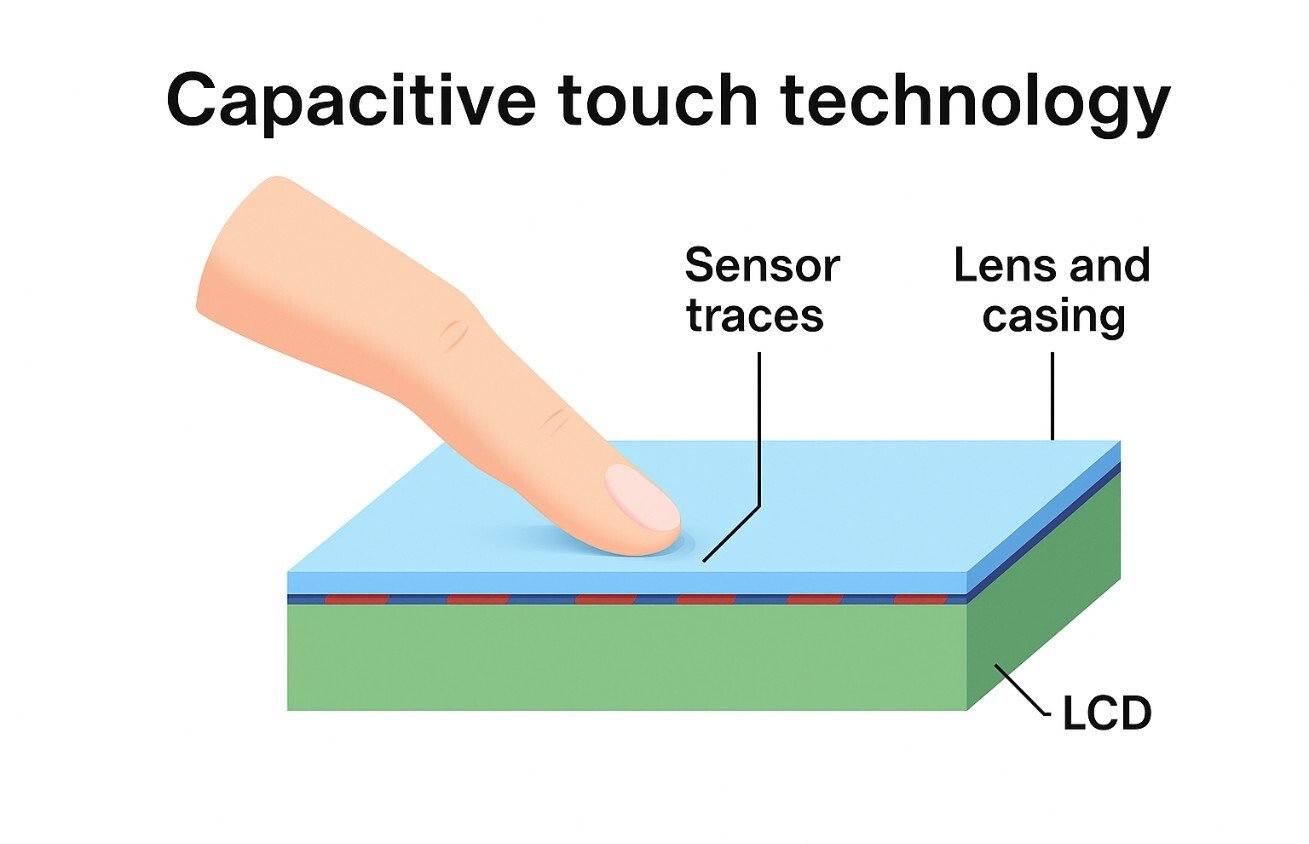

What Is a Capacitive Touch Screen?

A capacitive touch screen detects input through the electrical properties of the human body or other conductive objects. It doesn’t require pressure to operate, just a light touch.

These screens are typically made from glass coated with a transparent conductive layer like indium tin oxide (ITO). When a user touches the surface, the screen’s electrostatic field changes, and sensors pinpoint the touch location.

Common applications: smartphones, tablets, digital displays, medical devices, and automotive dashboards.

How Does a Capacitive Touch Screen Work?

Capacitive touchscreens work based on capacitance. Here’s how:

• A constant electrostatic field is applied across a conductive layer.
• When touched with a conductive object (like a finger), the field is disrupted.
• This change in capacitance is detected by a grid of electrodes.
• The controller translates this into an exact touch location.

Projected capacitive (PCAP) technology is widely used today because it supports multi-touch gestures, is highly responsive, and delivers excellent optical clarity. However, standard capacitive screens may not work with gloves or non-conductive styluses unless specifically engineered for such use.

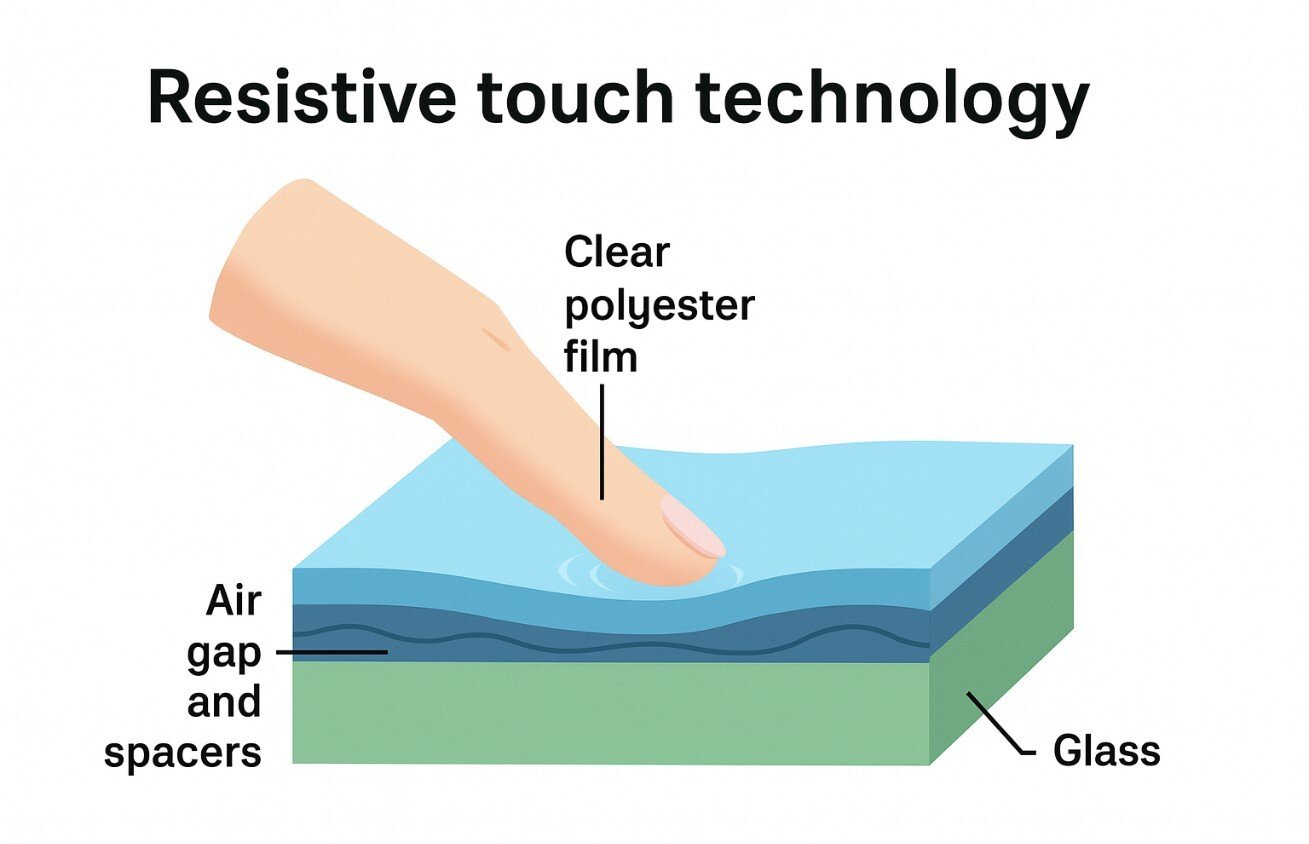

What Is a Resistive Touch Screen?

A resistive touch screen detects touch through physical pressure. It consists of two flexible layers (usually polyester or PET) separated by a small air gap. Both layers are coated with a conductive material.

When the top layer is pressed, it bends and touches the bottom layer, forming an electrical connection at the contact point. This registers as a touch input.

Common applications: ATMs, industrial controls, handheld terminals, and outdoor kiosks.

How Does a Resistive Touch Screen Work?

Resistive touch screens operate like a pressure-sensitive switch:

• The screen waits for the top layer to physically touch the bottom layer.
• A low voltage runs through the layers.
• When pressure is applied, the circuit is completed.
• The device then calculates the X and Y coordinates of the touch point.

This technology works with any input fingers (gloved or ungloved), styluses, or even tools, making it highly versatile in rugged and industrial environments.

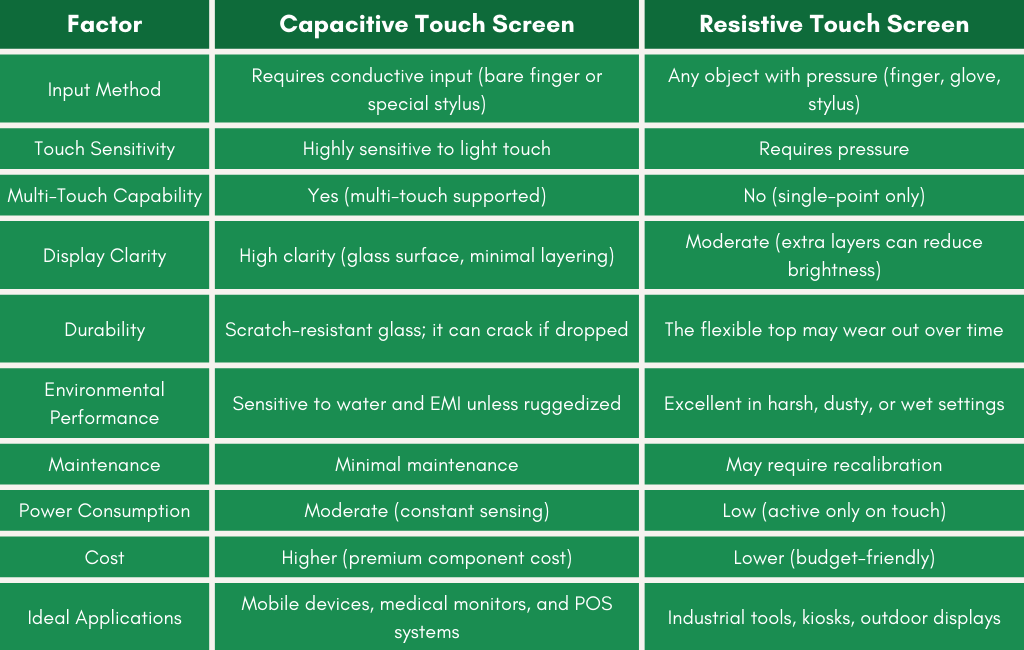

Capacitive vs Resistive Touch Screens: Key Differences

Here's a comparison to help clarify how these technologies stack up:

Choosing the Right Touch Screen for Your Application

The right choice depends on your application’s priorities:

Choose Capacitive if:

• You need multi-touch gestures or fluid touch interaction.
• High visual clarity is important.
• The product is used in clean indoor or sealed environments.
• You want a sleek, modern user experience.
• Ideal for consumer electronics, factory HMIs, kiosks, and sealed medical devices like diagnostic monitors.

 Choose Resistive if:

• The device is used in harsh environments (dust, moisture, and outdoor).
• Users wear gloves or use non-conductive tools.
• Cost is a key factor.
• Single-point touch is sufficient.
• Ideal for industrial equipment, outdoor kiosks, and rugged instrumentation.

Factors Beyond Technology: Installation & User Environment

• Installation Conditions: Consider whether the screen will be flush-mounted, exposed to direct sunlight, or enclosed in a housing; these factors affect glare, brightness, and panel selection.
• User Expectations: Consumer-facing interfaces benefit from fast, smooth, multi-touch interaction, while industrial users may prioritize tactile feedback and glove compatibility.
• Regulatory & Safety Requirements: For medical or mission-critical systems, touchscreens must meet performance and durability standards (e.g., IEC 60601, MIL-STD, IP ratings)

Emerging Trends in Touch Screen Technology

• Glove-Friendly Capacitive Screens: Newer capacitive touch screens are being engineered to work with gloves, expanding their use in healthcare, cleanrooms, and industrial applications.
• Hybrid Touch Panels: Some manufacturers now combine capacitive and resistive elements to support both multi-touch gestures and rugged input scenarios.
• Transparent Conductive Films: Alternatives to ITO, like silver nanowires and graphene, are being explored to create thinner, more flexible touch screens with improved durability.

Designed to Meet Your Environment, Not Just Your Budget

Both touch technologies have evolved significantly. Capacitive screens lead in speed, responsiveness, and aesthetic design, making them ideal for consumer electronics and clean environments. Meanwhile, resistive screens remain a solid choice for industrial settings, thanks to their ruggedness, glove compatibility, and lower cost.

The decision isn't just about price or performance; it’s about aligning technology with your product's environment, user interaction, and lifecycle expectations.

At Butler Technologies, Inc., we help manufacturers design user interfaces that work in real-world conditions. Whether you're building next-gen medical wearables or field-ready equipment, we can recommend the best-fit touchscreen solution to bring your product to life.
