Capacitive touch screen technology has revolutionized the way we interact with devices. From smartphones and tablets to ATMs and industrial machines, these sleek and responsive interfaces have become a standard in modern design. Unlike older resistive touch screens, capacitive screens rely on the electrical properties of the human body to detect touch, offering faster, more accurate, and multi-touch capable interfaces.

In this blog, we’ll explore what a capacitive touch screen is, how it works, the different types available, and why it’s the preferred choice for a wide range of applications.

 Brief History of Capacitive Touch Screens

• 1960s: Initial capacitive sensor technology developed for radar systems
• 1980s: Early use in industrial applications and ATMs
• 2000s: Introduction in consumer electronics with PDAs and smartphones
• Today: Widespread use across industries, with continuous innovation in flexibility, sensitivity, and durability

What is a Capacitive Touch Screen?

Reference: https://www.iqsdirectory.com/articles/membrane-switch/capacitive-touch-screens.html

A capacitive touch screen is a display technology that uses the conductive properties of the human body to detect and respond to touch. Instead of pressure-based input like a resistive touch screen, a capacitive screen registers changes in capacitance when a finger or conductive stylus comes close to or touches the screen.

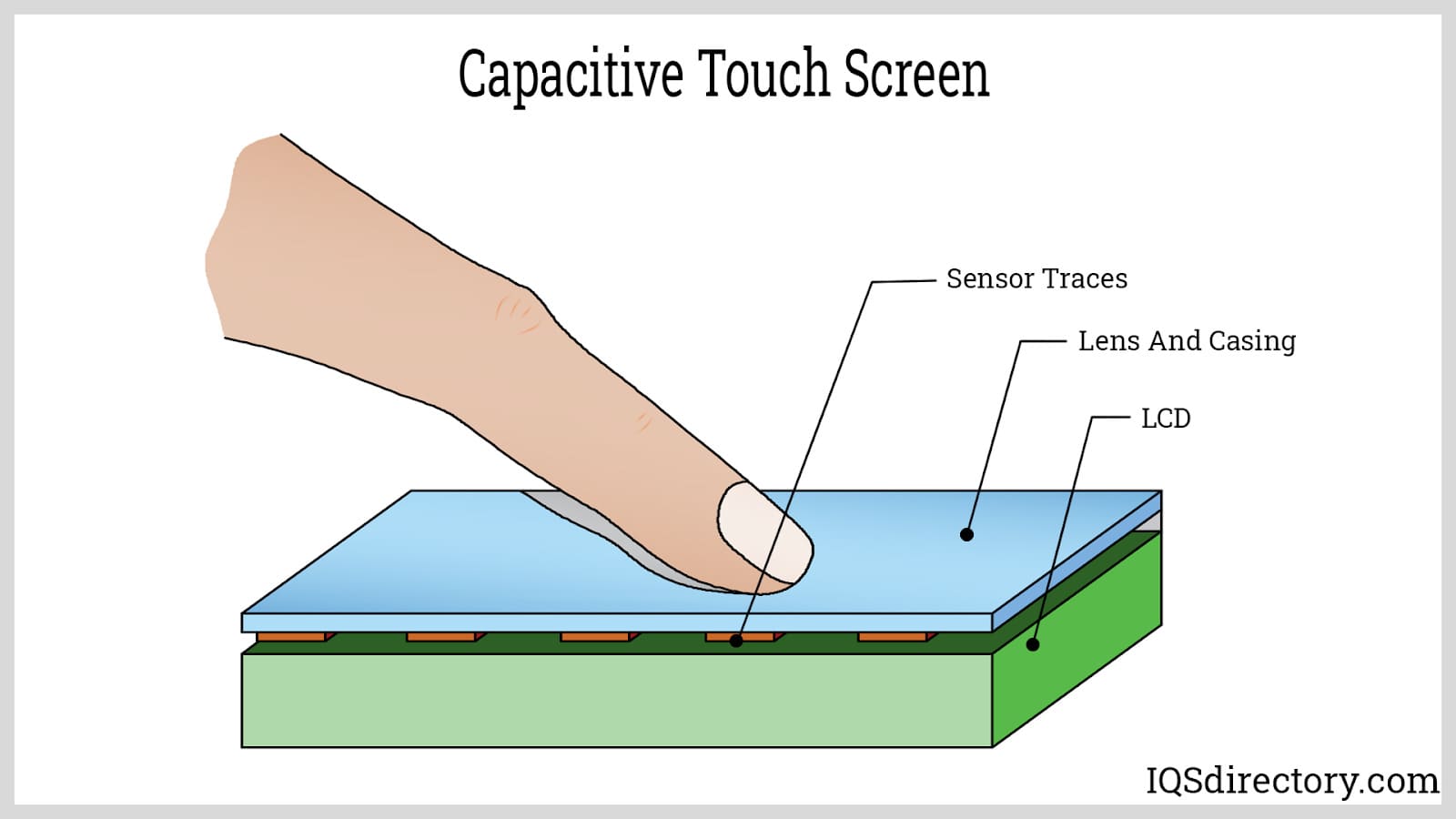

Capacitive touch panels are made with layers of glass or plastic coated with a conductive material like indium tin oxide (ITO). These layers form an electrostatic field that changes when touched, allowing the screen to pinpoint the location of the contact.

Capacitive touch displays are commonly used in consumer electronics, medical equipment, industrial control panels, and automotive infotainment systems. Capacitive touchpads are also integrated into laptops and other compact input systems.

Learn more about printed electronics and how advanced materials are used in custom interface designs.

How Do Capacitive Touch Screens Work?

Reference: https://www.iqsdirectory.com/articles/membrane-switch/capacitive-touch-screens.html

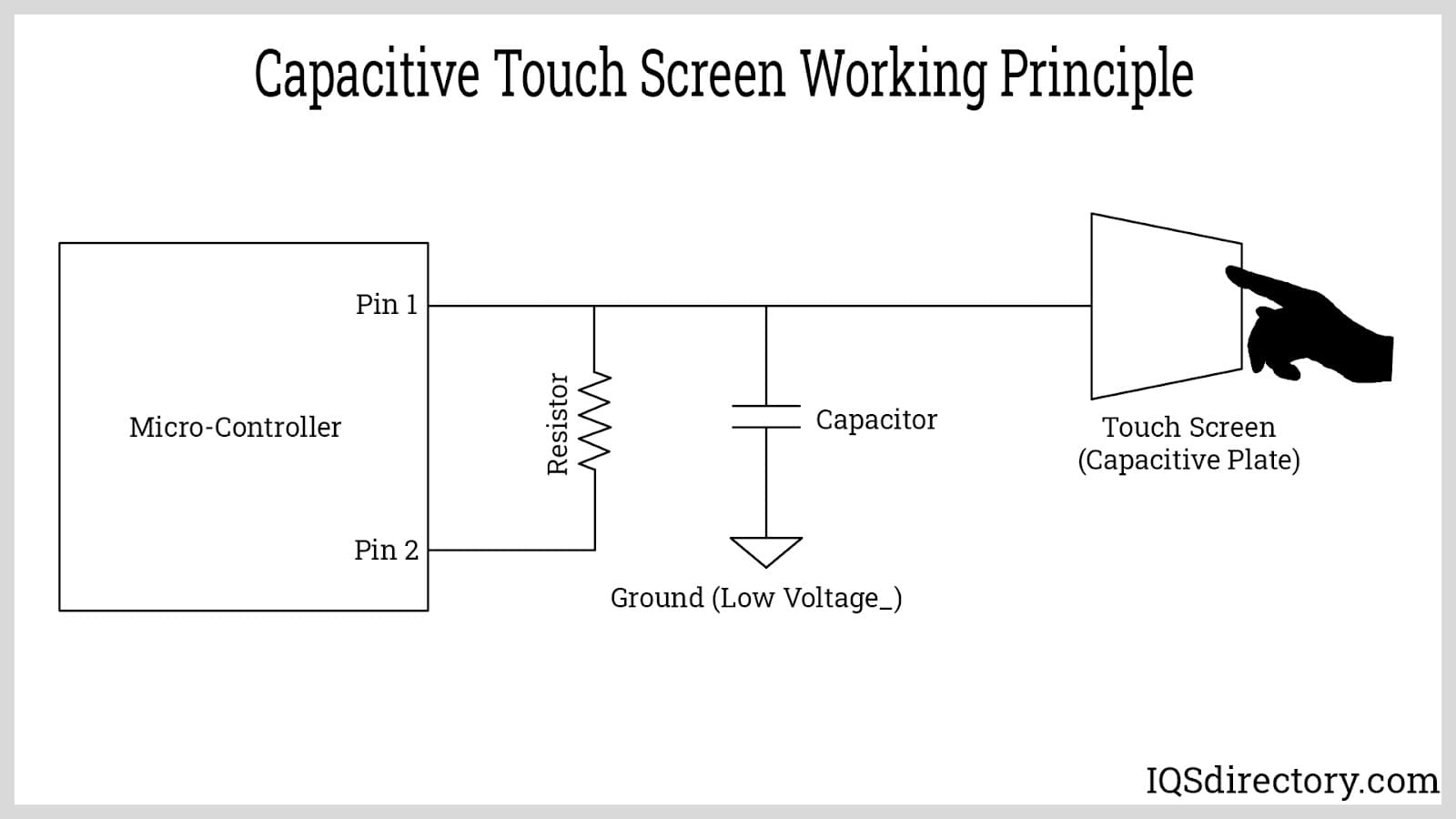

Capacitive touch screens operate based on the principle of capacitance. Here’s a simple breakdown:

• The screen holds a constant electrostatic field.
• When a conductive object (like your finger) touches the screen, it disrupts the field.
• This disruption changes the local capacitance.
• Sensors around the screen detect the location of the change.
• The touch controller processes this data and determines the touch point.

Types of Capacitive Touch Screens

A. Surface Capacitive Touch Screens

Reference: https://www.iqsdirectory.com/articles/membrane-switch/capacitive-touch-screens.html

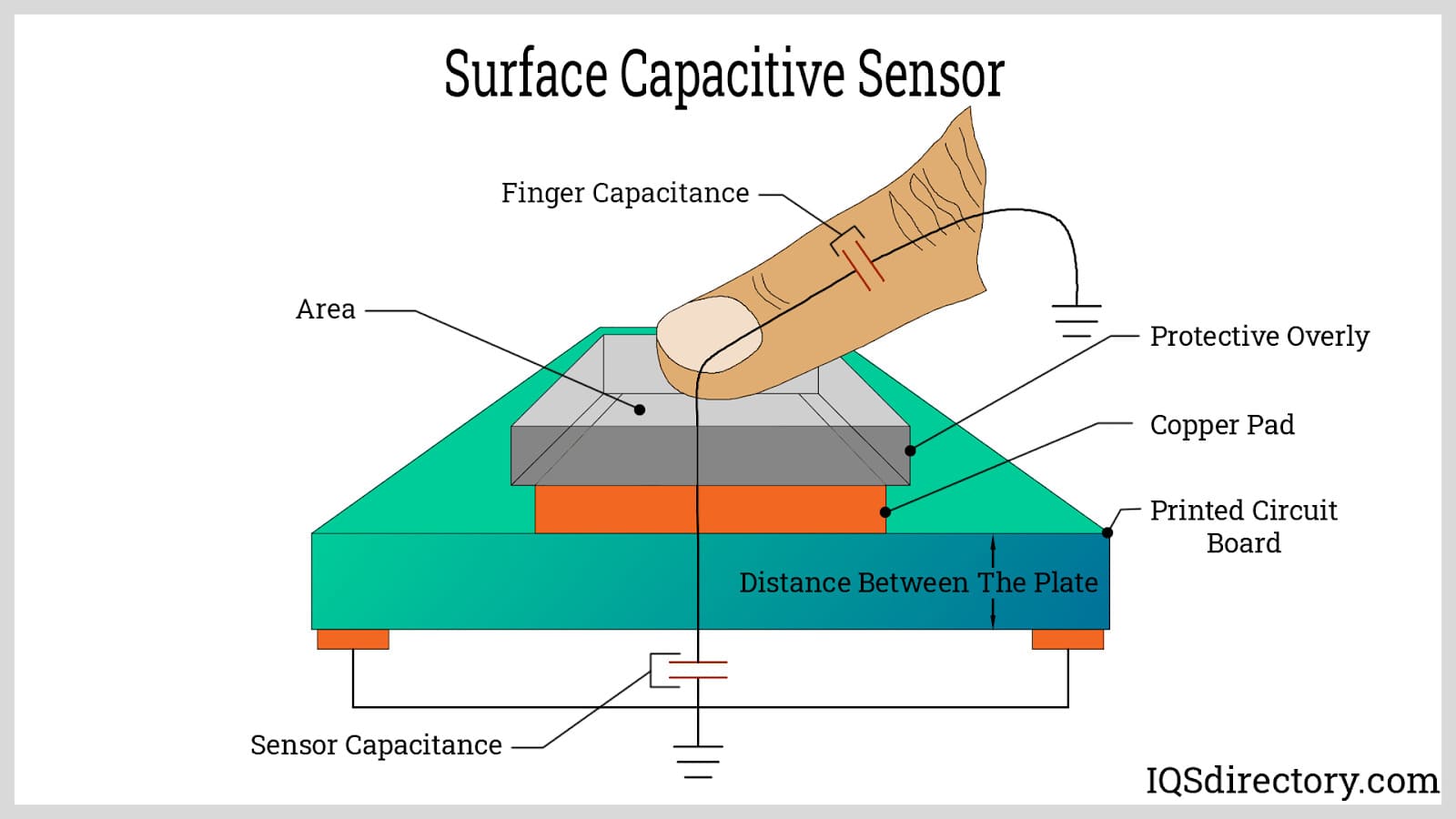

This is one of the simplest forms of capacitive screens. A conductive coating is applied to one side of the glass, and a small voltage is applied to the corners. When a finger touches the screen, it draws a small current from each corner.

Advantages:

• Durable and resistant to contaminants
• Cost-effective

Limitations:

• Can’t support multi-touch
• Less sensitive than projected capacitive versions
• Often less responsive with gloved hands or styluses

Common Uses:

• Kiosks
• ATMs
• Ticket vending machines

B. Projected Capacitive Touch Screens (PCAP)

Reference: https://www.iqsdirectory.com/articles/membrane-switch/capacitive-touch-screens.html

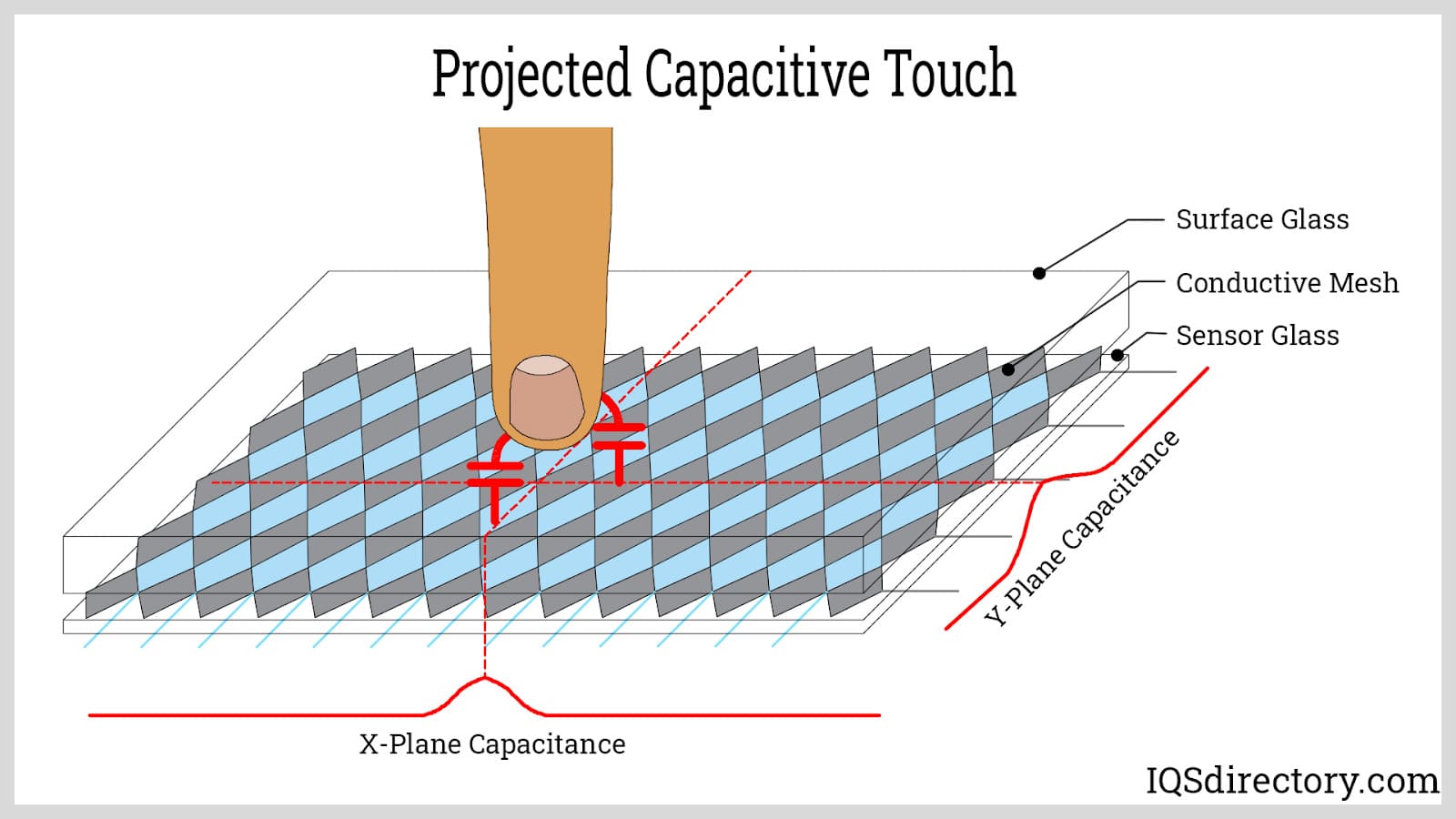

This is the most advanced and commonly used type of capacitive touch panel. It has a grid of transparent conductive materials layered between glass sheets. It detects touch points by measuring changes in the electrical field across the grid.

Advantages:

• Supports multi-touch
• High sensitivity and accuracy
• Works with glass and plastic surfaces
• Ideal for rugged, outdoor, or industrial use

Subtypes:

• Self-Capacitance: Measures individual electrode-to-ground capacitance
• Mutual Capacitance: Measures changes between intersecting electrodes (better for multi-touch)

Common Uses:

• Smartphones and tablets
• Medical monitors
• Industrial HMIs

Learn how capacitive touch sensors are custom-engineered for rugged environments.

C. PCT Mutual Capacitance

Reference: https://www.iqsdirectory.com/articles/membrane-switch/capacitive-touch-screens.html

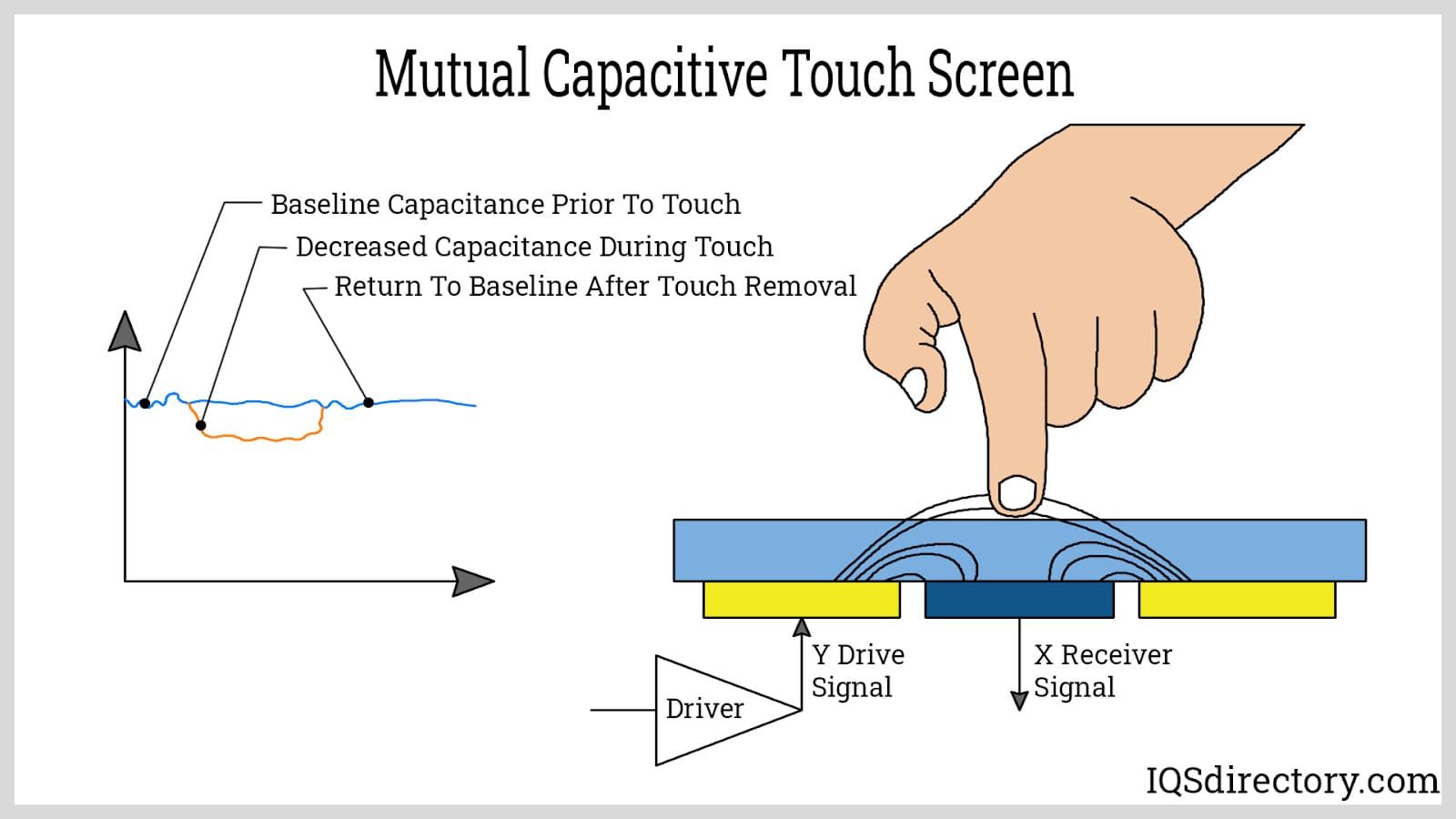

PCT (Projected Capacitive Technology) Mutual Capacitance involves a matrix of rows and columns of conductive material, where each intersection functions as a capacitor. When a finger approaches, it changes the mutual capacitance between electrodes.

Advantages:

• True multi-touch capability (tracks multiple fingers simultaneously)
• Excellent noise immunity and responsiveness
• Widely used in smartphones and tablets

Common Uses:

• Advanced consumer devices
• Medical touch screens
• High-end kiosks and interfaces

D. PCT Self-Capacitance

PCT Self-Capacitance measures changes in capacitance between electrodes and the ground. It uses simpler circuitry than mutual capacitance and is often more sensitive but can struggle with accurately tracking multiple simultaneous touches.

Advantages:

• Simpler design and lower cost
• Higher sensitivity

Limitations:

• Limited multi-touch support (ghosting effects)

Common Uses:

• Touch-enabled appliances
• Budget-friendly consumer electronics

Explore how flexible printed sensors support new innovations in bendable electronics.

Advantages of Capacitive Touch Screens

Capacitive touch displays offer a wide range of benefits:

• High Durability: Made of toughened glass; scratch and impact resistant
• Excellent Clarity: High light transmission ensures vibrant display quality
• Multi-Touch Capability: Recognizes gestures like pinch-to-zoom or swiping
• Fast Response: Minimal delay between touch and action
• Low Maintenance: Easy to clean and resistant to dust and oils
• Long Lifespan: No mechanical wear and tear like resistive touchscreens
• Sleek Aesthetics: Enables seamless, modern design

Applications of Capacitive Touch Technology

Capacitive touch panels are found in numerous industries due to their adaptability and performance:

• Consumer Electronics: Smartphones, tablets, laptops, smartwatches
• Industrial Controls: Human-Machine Interfaces (HMIs), factory automation, kiosks, panel PCs
• Medical Devices: Touch interfaces on monitoring and diagnostic equipment, often sealed to meet hygiene standards
• Automotive: Infotainment systems, dashboard controls, navigation
• Retail: Point-of-Sale (POS) terminals, digital signage, self-service kiosks
• Aerospace and Defense: Avionics displays, tactical systems

See how medical device interfaces are designed to meet strict performance and hygiene requirements.

Design Considerations for Capacitive Screens

When integrating capacitive touchscreens into a device, several factors must be considered:

• Display Type: Choose between glass, plastic, or hybrid panels based on environment
• Operating Environment: Consider moisture, EMI/RFI noise, temperature, and dust exposure
• User Interaction Needs: Multi-touch vs. single-touch, stylus vs. finger
• Glove Use: Use tuning techniques or select advanced PCAP technology for glove input
• Durability Requirements: Rugged coatings or laminated protection for outdoor/industrial settings

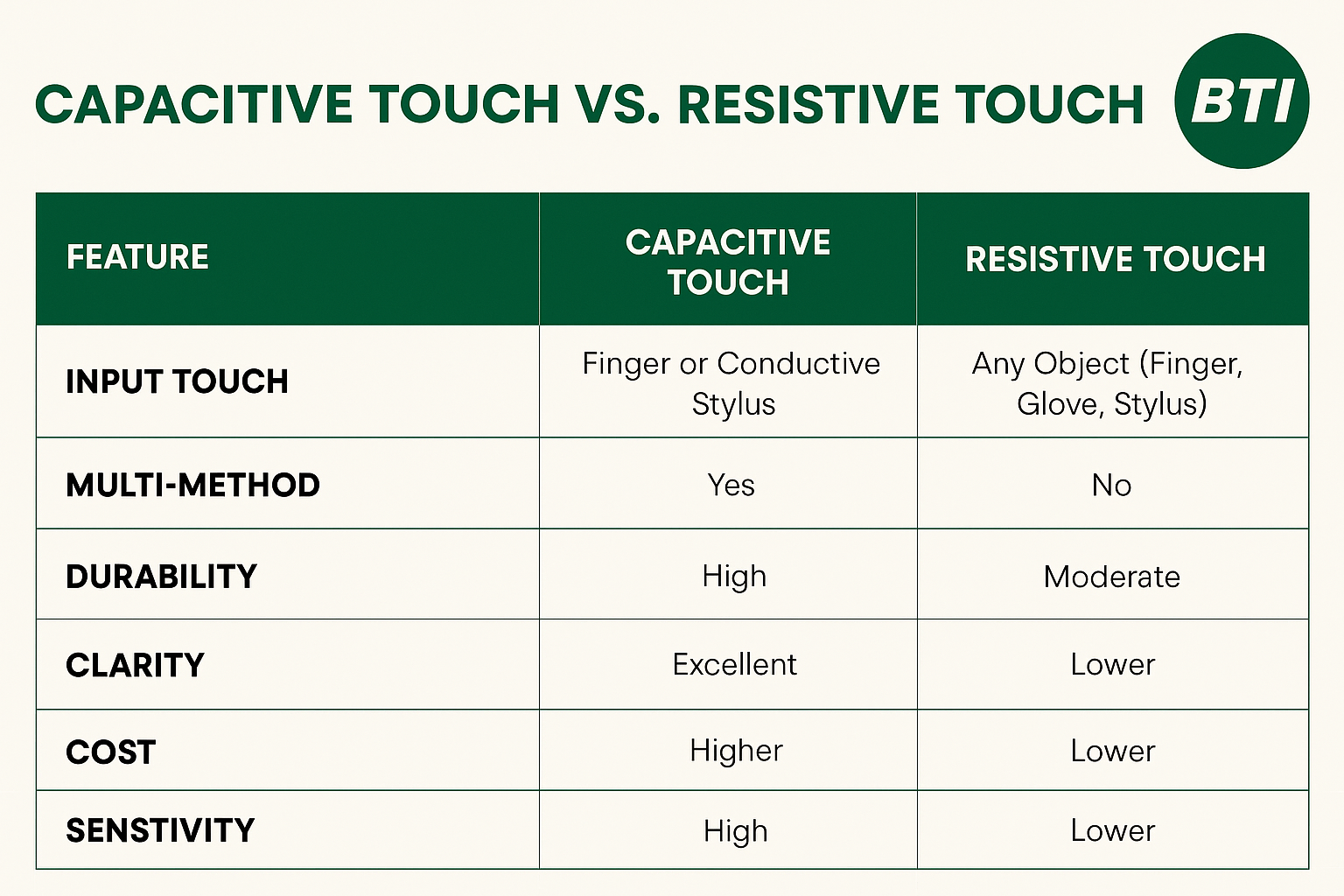

Capacitive Touch vs. Resistive Touch: A Quick Comparison

Summary: Capacitive touchpads and screens offer a superior user experience with better responsiveness, durability, and support for gestures. Resistive screens are still useful for low-cost or gloved environments, especially in industrial or medical applications.

Limitations and Considerations

1. Moisture Sensitivity

Capacitive touch screens can be affected by moisture, water droplets, or high humidity. Since they detect touch based on electrical charge, any conductive liquid on the surface can interfere with signal accuracy. This may lead to false touches or unresponsiveness unless the device is specially treated or sealed. In industrial and medical settings, water-resistant coatings or IP-rated enclosures are often used to mitigate this issue.

2. Glove Use

Standard capacitive screens typically don't respond to gloved touches because gloves insulate the human finger’s electrical charge. While this isn’t an issue for bare-handed users, it can be problematic in environments like hospitals, cold climates, or industrial sites where gloves are mandatory. However, manufacturers now offer glove-compatible PCAP touchscreens by increasing sensitivity or using specialized firmware.

3. Higher Initial Cost

Capacitive touchscreens, especially projected capacitive types, generally have a higher upfront cost compared to resistive screens due to their materials, layered construction, and precision sensors. That said, their longer lifespan, reduced maintenance, and better user experience often justify the cost in the long run—making them a cost-effective investment over time.

4. EMI Interference

Capacitive screens are susceptible to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), especially in industrial or military environments where electrical noise is common. Without proper shielding, EMI can affect touch accuracy or cause the screen to malfunction. To prevent this, designers often incorporate EMI filters, shielding films, or grounding techniques.

5. False Touches

Capacitive screens are highly sensitive, which makes them more prone to registering unintended touches. Environmental factors such as static electricity, screen contamination, or hovering fingers can sometimes trigger ghost touches. Advanced touch controllers and firmware algorithms are used to filter out noise and improve input accuracy, especially in high-precision applications.

Recent Innovations in Capacitive Touch Technology

• Glove and Stylus Compatibility: Improved tuning and conductive styluses for broader input options
• Flexible Screens: Used in foldable phones and curved interfaces
• Bezel-less and Edge-to-Edge Designs: Enhancing aesthetics and usability
• Integration with AI & IoT: For smart environments and adaptive interfaces
• Advanced Materials: Graphene and silver nanowire for enhanced conductivity
• Embedded Touch Feedback: Combining haptics and capacitive sensors for interactive user experiences

The capacitive touch screen has set a new standard for user interaction. Its ability to deliver fast, responsive, and visually clear touch experiences makes it the top choice across industries. From smartphones to industrial controls, capacitive touch displays are evolving rapidly, offering more flexibility and innovation than ever before.

Whether you're designing consumer products or industrial systems, understanding the principles, types, and benefits of capacitive technology helps you make smarter choices. With options like projected capacitive, in-cell designs, and flexible displays, the capacitive touch panel continues to lead the future of user interface design.

As demand for seamless and smart interfaces continues to grow, the capacitive touch panel remains at the heart of the human-machine interaction revolution.
