Summary

Design for full-scale production is the discipline of engineering a product so it can be manufactured repeatably, affordably, and reliably at volume, not just built once as a working prototype. It extends Design for Manufacturability (DFM) and Design for Assembly (DFA) into a complete lifecycle strategy that aligns product design with real manufacturing capability, supply chain reality, and quality requirements.

In this blog, you'll learn:

• What design for full-scale production means and what it includes
• How it differs from DFM and DFA
• The core principles that separate scalable designs from prototype-only designs
• How early design decisions lock in 70–80% of a product's lifetime cost
• The process used to move a product from concept to repeatable, high-volume production
• What to look for in a manufacturing partner that supports design for full-scale production

For OEMs working with printed electronics, membrane switches, overlays, sensors, and complex interface assemblies, designing for full-scale production is no longer a late-stage concern — it is the strategy that determines whether a product launches on time, on budget, and at quality.

Most products don't fail in production. They fail in design.

A prototype that works on the bench can collapse under the demands of full-scale production — inconsistent materials, tight tolerances that don't hold at volume, parts that can't be sourced reliably, and assemblies that fight the operator instead of helping them.

By the time these issues appear on the production floor, most of the product's cost has already been locked in. Industry research shows that 70–80% of a product's lifetime manufacturing cost is decided during early design, and applying design-for-manufacturing principles early can cut development time and material cost by 15–30%.

That's why leading OEMs no longer treat design and production as separate phases. They treat them as one connected discipline: design for full-scale production.

What Is Design for Full-Scale Production?

Design for full-scale production is the engineering discipline of designing a product so it can be manufactured repeatably, affordably, and reliably at volume, not just built once as a working prototype.

It builds on two well-known disciplines:

• Design for Manufacturability (DFM) — designing parts so they are easy and cost-effective to manufacture
• Design for Assembly (DFA) — designing products so they are easy to assemble correctly

Design for full-scale production extends both. It asks a bigger question:

Can this product be built — to the same quality, at the same cost, by the same partners — 10,000 times in a row?

For OEMs working with printed electronics, membrane switches, graphic overlays, sensors, and complex interface assemblies, that question decides everything: launch dates, gross margins, warranty rates, and how confidently the product can scale.

For a deeper breakdown of the design discipline behind this, read our guide on what design for manufacturing means.

A scalable design typically accounts for:

• Real manufacturing process capabilities, not idealized CAD assumptions
• Material performance at volume, including lot-to-lot variation
• Tolerance discipline that matches process capability
• Assembly methods that reduce operator error
• Test and inspection access built into the part
• Supply chain reliability for every component on the BOM

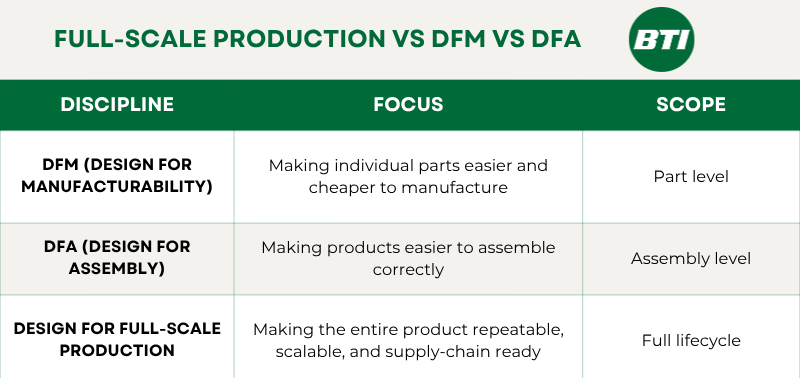

Design for Full-Scale Production vs DFM vs DFA

These terms are often used interchangeably. They shouldn't be.

Simple way to remember:

• DFM = "Can we make this part well?"
• DFA = "Can we put it together easily?"
• Design for full-scale production = "Can we do both, every time, at volume, profitably?"

Core Principles of Design for Full-Scale Production

1. Simplification

Every part you remove is a part that can't fail, can't be sourced incorrectly, and can't slow down the line.

• Reduce total part count
• Combine functions where possible
• Eliminate features that don't add value

2. Standardization

Custom parts feel powerful in design reviews and painful at scale.

• Use proven, widely available components
• Standardize fasteners, connectors, and adhesives
• Reuse approved stack-ups and material families

3. Process-Aware Design

A design is only as good as the process that has to make it.

• Match design choices to real manufacturing capabilities
• Avoid CAD-perfect features that the process can't repeat
• Involve manufacturing during concept design, not after

New to this stage? Read our guide on what prototyping in product development involves.

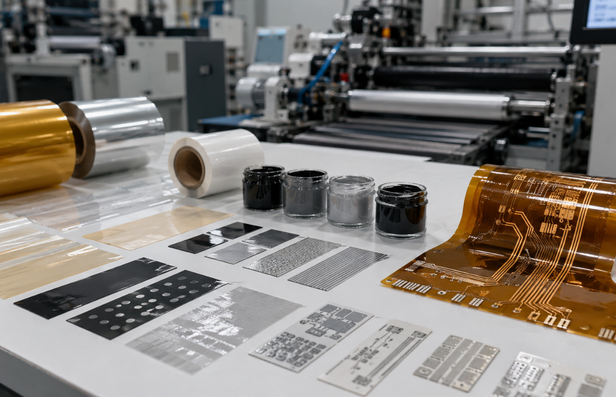

4. Material Selection for Scale

The best material for a prototype is rarely the best material for production.

• Choose materials that perform consistently at volume
• Account for lot-to-lot variation
• Validate supply continuity, not just performance

5. Tolerance Discipline

Over-tolerancing is one of the most common — and expensive — mistakes in OEM design.

• Apply tight tolerances only where function demands them
• Open up everywhere else
• Run stack-up analysis before tooling

6. Design for Assembly (DFA)

Operators should not have to fight the product.

• One-direction assembly wherever possible
• Self-locating, mistake-proof features
• Fewer fastener types and orientations

7. Test and Inspection Built In

Quality is a system, not a step at the end.

• Designed access for electrical and functional testing
• Clear go/no-go inspection criteria
• Traceability is designed into the part

Why Design for Full-Scale Production Matters for OEMs

Most production problems are inherited from design.

When design and production aren't aligned, the cost shows up everywhere:

• Long, expensive redesigns during ramp-up
• Scrap and rework from tolerances the process can't hold
• Field failures from materials that didn't behave the same at volume
• Supply chain shocks when a "perfect" component disappears
• Missed launch windows and shrinking margins

When they are aligned, the picture changes:

• Predictable cost per unit
• Faster, smoother ramp-up
• Lower scrap and warranty rates
• Stronger gross margins
• Confidence to scale into new markets

This is why DFM and design for full-scale production have moved from a technical detail to a strategic requirement for OEMs.

How Design Decisions Impact Full-Scale Production

Every early decision sets a cost and risk floor. The most impactful:

• Material choice — drives cost, supply risk, and long-term reliability
• Tolerance strategy — defines scrap rate and process complexity
• Joining and assembly methods — control labor cost and rework
• Module and stack-up architecture — determines how easily the product can scale or evolve
• Test and inspection access — decides whether defects are caught early or in the field
• Packaging and logistics readiness — affects damage, returns, and downstream assembly speed

The earlier these are made with manufacturing input, the more value design for full-scale production delivers.

Common Mistakes That Break Designs at Scale

• Designing only for the prototype, not the 10,000th unit
• Applying tight tolerances to features that don't need them
• Choosing premium materials that can't be sourced in volume
• Locking the design before involving manufacturing
• Skipping a formal DFM/DFA review before tooling
• Treating prototypes as proof of producibility (they aren't)

The Design for Full-Scale Production Process

1. Concept and Manufacturability Review

• Cross-functional review with design, engineering, and manufacturing
• Early DFM and DFA input
• Cost, risk, and producibility modeling

2. Material and Process Qualification

• Materials chosen for performance and supply continuity
• Processes chosen based on volume targets and tolerance needs
• Vendor and tooling readiness validated up front

3. Prototype Validation Against Production Intent

• Prototypes built with production-representative materials
• Testing under real-world environmental and use conditions
• Honest evaluation of whether the prototype represents the future production part

4. Design Refinement and Tolerance Lock

• Stack-up analysis
• Tolerance tightening only where required
• Final DFA review before tooling

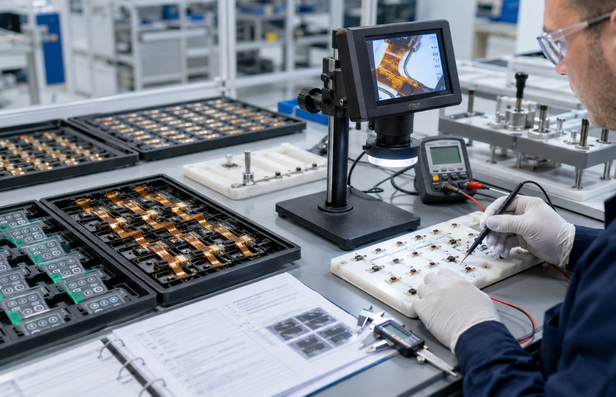

5. Pre-Production and Pilot Builds

• Small-batch builds on production tooling
• First-article inspection
• Process capability (Cp/Cpk) validation

6. Full-Scale Production Release

• Validated process and quality plan
• Documented work instructions
• Change control, traceability, and continuous improvement

Tools and Methods Used in Design for Full-Scale Production

Modern OEMs and manufacturing partners increasingly rely on digital tools to test manufacturability before the prototype is built.

• DFM and DFA reviews
• CAD with built-in manufacturability checks
• CAE, FEA, and tolerance stack-up analysis
• Digital twins and production simulators
• Process capability (Cp/Cpk) studies
• FMEA (Failure Mode and Effects Analysis) and risk-based design reviews

The result: fewer surprises, faster ramp-ups, and lower total cost.

Applications Across OEM Manufacturing

Design for full-scale production is critical across:

• Medical devices and diagnostic equipment
• Industrial controls, HMIs, and control panels
• Printed electronics and flexible circuits
• Membrane switches and graphic overlays
• Sensors and force-sensing resistors
• Aerospace, defense, and automotive interfaces
• Custom OEM sub-assemblies

How to Choose a Partner for Design for Full-Scale Production

Not every manufacturer is built for this.

Look for a partner that offers:

• Real engineering depth in DFM and DFA
• In-house process expertise (print, cut, laminate, assemble, test)
• A proven track record scaling products from prototype to volume
• Strong quality systems and certifications
• Material and supply chain expertise
• The willingness to challenge a design, not just quote it

The best partners shape the design, not just the part.

How We Support OEMs at Butler Technologies, Inc. (BTI)

At Butler Technologies, Inc. (BTI), design for full-scale production is built into how we work with OEMs from day one.

Capabilities include:

• Engineering collaboration during concept and design phases
• DFM and DFA reviews for printed electronics, membrane switches, overlays, and assemblies
• Material and process recommendations driven by real production data
• Prototyping with production-representative materials and processes
• Scalable, in-house manufacturing built for full-scale production
• Quality, traceability, and change control across the full lifecycle

The goal is straightforward: help OEMs design products that are ready to scale on day one, not after a year of rework.

Ready to scale your product from prototype to volume? Request a quote from Butler Technologies.

Key Takeaways

• Design for full-scale production is the discipline of designing for repeatable, scalable, profitable manufacturing — not just a working prototype
• It extends DFM and DFA into a full lifecycle strategy
• 70–80% of a product's lifetime cost is locked in during early design
• Applying these principles early can cut development time and material cost by 15–30%
• The right manufacturing partner shapes the design, not just the part
• Butler Technologies, Inc. (BTI) supports OEMs from concept through full-scale production

Frequently Asked Questions (FAQs)

What does design for full-scale production mean?

Design for full-scale production means engineering a product so it can be manufactured repeatably, affordably, and reliably at volume — not just built once as a working prototype. It aligns product design with manufacturing capability, supply chain reality, and quality requirements.

How is design for full-scale production different from DFM?

DFM (Design for Manufacturability) focuses on making individual parts easier and cheaper to manufacture. Design for full-scale production goes further, covering the full product lifecycle — including materials, assembly, supply chain, quality, and scaling — so the entire product can be built consistently at volume.

How does design impact full-scale production?

Design decisions made early — material choice, tolerances, assembly methods, and test access — lock in 70–80% of a product's lifetime cost and most of its manufacturing risk. Strong design choices make ramp-up smooth; weak ones create rework, scrap, and delays.

When should the design for full-scale production start?

It should start at the concept stage. The earlier the manufacturing input is included, the more cost, risk, and time can be saved. Waiting until after tooling is the most expensive place to fix design problems.

Why do OEMs work with Butler Technologies, Inc. (BTI) for design and production?

OEMs work with Butler Technologies, Inc. (BTI) because we combine engineering input, in-house manufacturing for printed electronics and interface components, and proven experience scaling products from prototype to full-scale production all under one partner.
