Gaskets are engineered sealing components designed to prevent leakage between two mating surfaces. In industrial and electronic systems, gaskets create a controlled barrier that blocks dust, dirt, moisture, chemicals, and other contaminants from entering sensitive assemblies.
If you are asking what gaskets are, the simplest answer is this: they are compressible materials placed between components to form a gasket seal under pressure. From heavy equipment enclosures to membrane switches and control panel interfaces, gaskets are critical to durability, reliability, and environmental protection.
Understanding how do gaskets work, what gasket materials are used, and how sealing performance ties to ingress protection and EMI control is essential for engineers designing modern electronic and industrial systems.
What Are Gaskets?
Gaskets are mechanical sealing elements installed between two surfaces to prevent leakage. When compressed, they conform to microscopic surface irregularities, creating a tight seal that blocks fluid, air, or particle intrusion.
The performance of a gasket seal depends heavily on the selected gasket materials. Common material types include:
1. Rubber gaskets used for flexibility and vibration absorption
2. Silicone gaskets for temperature resistance and long term durability
3. Metal gaskets for high pressure or high temperature environments
4. Composite gaskets that combine multiple materials for performance balance
Each material behaves differently under compression, temperature cycling, and chemical exposure. Proper material selection ensures long term sealing performance in the intended application.
In electronic and industrial equipment, gaskets are not optional components. They are structural parts of the environmental sealing strategy.
To explore the different gasket materials and common gasket applications used across industries, see this detailed guide on understanding gasket types, materials, and applications.

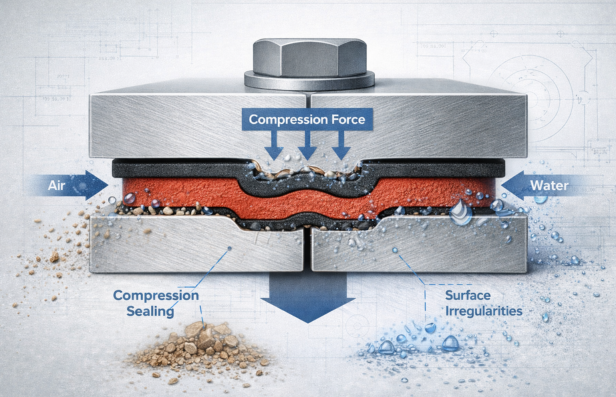

How Do Gaskets Work?
To understand how gaskets work, focus on compression.
When two parts are fastened together, the gasket is placed between them. As torque is applied to screws or bolts, the gasket compresses. This compression causes the material to:
- Fill surface irregularities
- Block air or liquid pathways
- Absorb vibration
- Prevent particle intrusion
Sealing effectiveness depends on consistent compression across the entire interface. Uneven pressure can compromise the seal and create leakage points.
A dust- and moisture-sealing gasket must maintain compression even during temperature fluctuations, vibration, or mechanical stress. In electronic enclosures and control panels, maintaining that seal protects circuits from humidity and contamination that could degrade performance.
The interaction between compression force, surface finish, and material elasticity determines whether a gasket will perform reliably over time.
Gaskets in Control Panels and Membrane Switches
In electronic assemblies, gaskets are commonly used as membrane-switch gaskets or control-panel gaskets.
A membrane switch gasket creates a seal between the switch assembly and the mounting surface. This prevents dust, dirt, and moisture from entering the device and damaging internal circuitry.
A control panel gasket functions similarly but may also support larger front panels or HMI interfaces. In these systems, the gasket must accommodate:
- Humidity exposure
- Temperature swings
- Chemical contact
- Mechanical vibration
Proper environmental sealing in control panels ensures long-term device reliability, especially in industrial, medical, transportation, and outdoor applications.
Custom gaskets are often required in these builds because standard shapes rarely match exact enclosure geometries. Precision fabrication ensures that the gasket aligns perfectly with the mounting surface and internal circuit layout.
IP Ratings and Ingress Protection
Many modern electronic assemblies require defined ingress protection ratings.
An ingress protection gasket is designed to meet specific IP code requirements that define protection against solids and liquids.

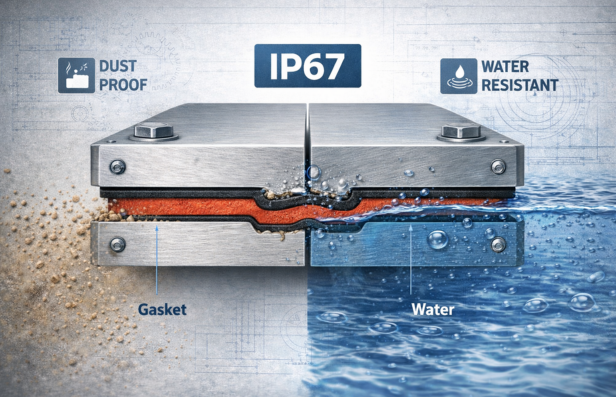

An IP67 gasket, for example, must provide:
Complete protection against dust ingress
Protection against temporary immersion in water under specified conditions
For membrane switches and control panels, achieving an IP67 rating often depends not only on gasket material but also on adhesive design and build construction.
In many sealed electronic assemblies, 3M 200MP adhesive is used around the circuit perimeter. To meet IP67 performance expectations, a minimum adhesive thickness is typically required to ensure uniform compression and continuous sealing around the interface.
Adhesive-backed gasket design must account for:
- Compression consistency
- Bond strength
- Thermal expansion
- Long term adhesion stability
Without proper adhesive thickness and alignment, even high-quality gasket materials may fail to achieve ingress protection targets.
IP ratings are not just marketing specifications. They reflect measurable protection performance in controlled test environments.
To learn how sealing components improve ingress protection performance in sensitive electronic systems, read our detailed guide on how gaskets boost IP ratings for medical HMI devices.
EMI Shielding and Conductive Gaskets
In electronic systems, environmental sealing is often combined with electromagnetic control.
An EMI shielding gasket is designed to block electromagnetic interference that could disrupt sensitive electronics. These gaskets may also support RFI shielding, protecting systems from radio frequency interference.

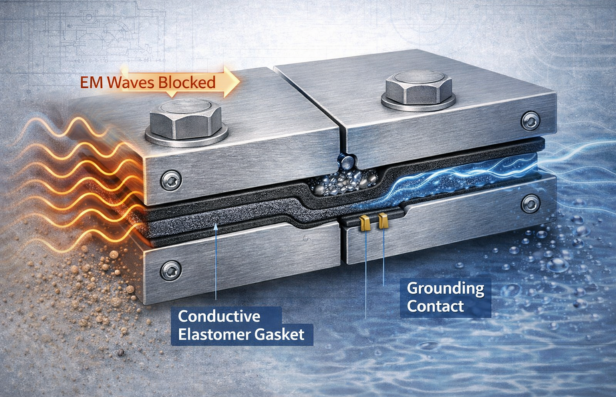

A conductive elastomer gasket is commonly used when both sealing and electrical conductivity are required. These materials combine elastomer flexibility with conductive fillers, allowing the gasket to:
- Maintain compression sealing
- Provide electrical grounding continuity
- Seal enclosure gaps that could allow EMI leakage
Enclosure gap sealing is critical in high-performance electronic assemblies. Even small discontinuities can allow interference to escape or enter.
By combining environmental sealing with EMI protection, conductive gaskets support both mechanical durability and electromagnetic compliance.
Custom Gaskets and Fabrication Methods
Standard off-the-shelf components rarely meet the dimensional or performance requirements of complex industrial assemblies.
Custom gaskets are engineered to match specific enclosure geometries, mounting surfaces, and performance requirements.
Precision fabrication plays a major role in final seal performance. Common manufacturing methods include:
- Laser cut gaskets for high precision edge definition and complex shapes
- Die cutting for repeatable, high-volume production
- Shear cutting for specific material requirements
Laser-cut gaskets are especially useful for intricate designs where tight tolerances are required. Precision cutting ensures consistent compression and alignment with circuit layouts.
Fabrication quality directly impacts sealing reliability. Inaccurate cuts, uneven edges, or dimensional inconsistencies can compromise gasket seal integrity.
For control panels and membrane switch assemblies, fabrication accuracy supports both environmental protection and aesthetic alignment with the device enclosure.
Engineering Considerations for High-Performance Gasket Design
Designing effective gaskets requires more than selecting a material.
Engineers must evaluate:
- Surface flatness of mating parts
- Compression force and torque limits
- Environmental exposure conditions
- IP rating requirements
- Adhesive thickness and bonding stability
- Electromagnetic shielding needs
Material selection, adhesive design, and fabrication precision all contribute to sealing performance.
In membrane switch and control panel assemblies, gaskets operate as part of a broader protection system that may include filters and barriers for airflow management, impact protection, or EMI control.
When properly engineered, gaskets provide long-term dust and moisture sealing, mechanical stability, and electromagnetic shielding in demanding industrial environments.
Butler Technologies manufactures custom gaskets designed specifically for membrane switches, control panels, and electronic enclosures, combining environmental sealing, ingress protection compliance, and precision fabrication capabilities to support high-performance applications.
