How Gaskets and Barriers Improve IP Ratings in Medical HMI Devices

Posted by Butler Technologies on July 31, 2025

When designing medical equipment, one critical goal is keeping dust, liquids, and other contaminants out of sensitive electronics. A spill on a hospital infusion pump or exposure to cleaning agents on a diagnostic monitor should not result in device failure. This is where Ingress Protection (IP) ratings come in – and where gaskets and barriers act as unsung heroes. IP ratings classify how well a device’s enclosure resists intrusion by solids and liquids. For medical HMI (Human-Machine Interface) devices, achieving a high IP rating is more than a technical spec – it’s about ensuring safety, reliability, and user confidence.

In this article, we’ll explore what IP ratings mean, why they matter for medical HMI devices, and how smart use of gaskets and barrier designs can dramatically improve these ratings. We’ll look at real-world examples (from hospital monitors to insulin pumps) and share best practices for engineers and designers.

What Are IP Ratings?

Ingress Protection (IP) ratings are international standards used to quantify how well an electronic device can withstand exposure to dust and water. These ratings are represented by two digits following the letters "IP." The first digit indicates the level of protection against solids, while the second digit reflects protection against liquids.

For instance, a device with an IP67 rating is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. This makes it a strong candidate for use in medical environments where spills, splashes, and dust are common.

Understanding these ratings helps manufacturers make informed decisions during the product development stage, ensuring devices meet both functional and safety standards.

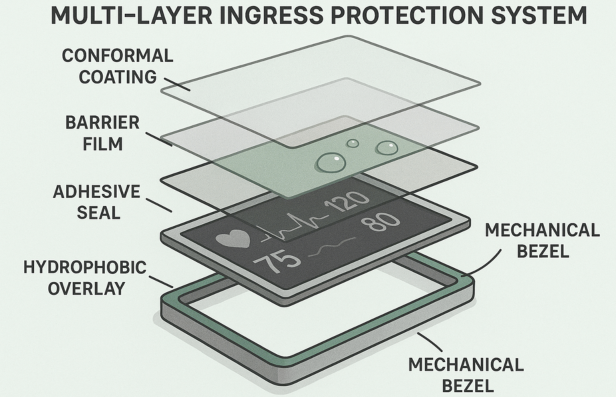

Exploded view of multi-layer barrier system in a sealed medical touchscreen device

Why IP Ratings Matter for Medical HMI Devices

In medical environments, cleanliness and reliability go hand in hand. Devices often operate in unpredictable settingsfrom sterile operating rooms to mobile triage units. IP ratings ensure devices can withstand these environments without suffering performance degradation.

For example, a touchscreen monitor in a surgical suite must resist alcohol-based disinfectants and bodily fluids while maintaining its touch sensitivity and display clarity. If the enclosure allows moisture to seep in, it could lead to short circuits, display malfunctions, or even device failure.

Moreover, healthcare regulations such as IEC 60601-1 require evidence that a medical device remains safe and effective under expected environmental conditions. High IP ratings help manufacturers meet these regulatory benchmarks.

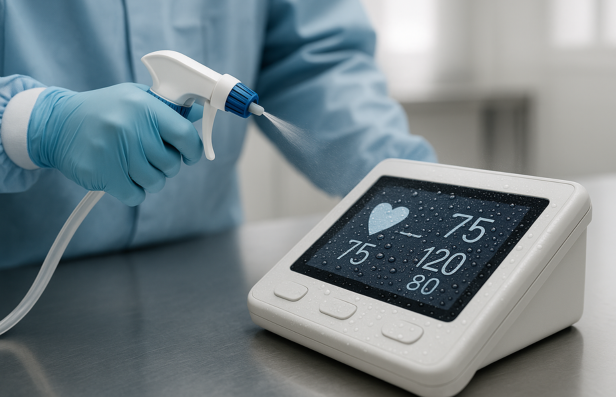

water-resistance testing helps validate gasket and enclosure design

Design Challenges in Achieving High IP Sealing

Creating a sealed device sounds straightforward in practice, but it involves navigating complex design trade-offs.

  1. Limited Space for Seals
    Medical HMI devices are getting smaller and thinner. Finding room for effective gasket systems without compromising design can be difficult.
  2. Functional Interruptions
    Buttons, ports, and sensors need openings, but each one is a potential entry point for dust and moisture. Sealing around these features without affecting usability is challenging.
  3. Repeated Use and Cleaning
    Healthcare professionals clean devices regularly, sometimes with harsh chemicals. Gasket materials must be durable enough to withstand repeated compression and exposure.
  4. Heat Management
    Tightly sealed devices can trap heat, risking component damage. Designers must balance sealing with proper thermal ventilation.
  5. Production Consistency
    High-performance sealing only works if executed consistently across manufacturing runs. Small variances in placement or compression force can reduce effectiveness.

Gaskets: The Front Line of Ingress Defense

Gaskets form the core of any effective sealing solution. Placed between two surfaces, these compressible materials block the passage of dust and fluids. In medical HMI devices, gaskets are commonly found:

  • Around enclosure seams
  • Beneath control panels and membranes
  • Behind display windows
  • Along edges of push-button interfaces

The right gasket not only prevents ingress but also absorbs vibrations, dampens noise, and accommodates structural flexing.

Find our helpful guide on - How to Choose the Right Gasket for Waterproof Control Panels

Gasket Materials and Properties

Not all gaskets are created equal. Material selection determines how well a gasket performs under pressure, temperature variation, and chemical exposure.

  • Silicone Rubber: Excellent flexibility, temperature resistance, and biocompatibility. Ideal for sterilizable devices.
  • EPDM: Offers superior chemical resistance and UV stability. Commonly used in hospital-grade electronics.
  • Polyurethane Foam: Lightweight and soft. Suitable for cushioning and non-contact seals.
  • PTFE (Teflon): Chemically inert and hydrophobic. Useful in lab devices.
  • FKM (Viton): Handles high temperatures and harsh environments. Used in high-performance devices.

Choosing the right material depends on the device’s application, environment, and user interaction.
Here is a guide on Gasket Properties At a Glance

Best Practices for Gasket Placement & Design

To maximize performance, engineers must design gasket systems with precision.

  • Ensure 360° perimeter coverage around sensitive areas
  • Maintain optimal compression (usually 25%-40%) for long-term effectiveness
  • Avoid sharp corners and inconsistent surfaces that can break seals
  • Use PSA-backed gaskets for ease of application and additional sealing
  • Consider mold or die-cut options to improve fit consistency

By accounting for mechanical tolerances and adhesive flow, designers can prevent under- or over-compression that might compromise IP rating.

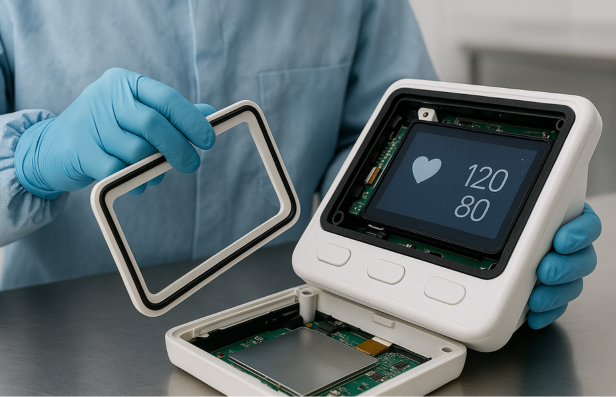

Close-up of a medical device being opened by a technician, showing internal gasket lining around touchscreen and buttons in a clean lab setting.

Protective Barriers and Sealants

While gaskets are the primary defense against ingress, other sealing elements provide important backup protection. These include:

  • Conformal Coatings: Thin polymer layers applied to PCBs to protect against humidity and contaminants
  • Barrier Films: TPU or PET layers applied over circuits or interface zones
  • Sealants: Silicone or acrylic adhesives used to seal seams or isolate components
  • Bezels and Overlays: Provide physical barriers and route liquid away from critical areas

These elements act as complementary safeguards to extend the product’s durability and performance.

Adhesive Seals & Barrier Films in Medical Devices

Many medical HMI interfaces rely on transparent overlays for user input. To prevent contamination beneath these overlays, adhesive seals and films are applied.

  • Display Bonding: Lens covers sealed with optically clear adhesives
  • Sensor Encapsulation: Critical circuits shielded from humidity
  • Edge Sealing: Prevents fluid from seeping around display boundaries

These components are critical in devices that require user interaction yet must remain fully sealed and easily cleanable.

Mechanical Barriers & Overlays

Structural elements can also enhance IP performance.

  • Raised Edges: Prevent fluid from pooling or reaching seams
  • Recessed Controls: Protect buttons from splashes
  • Hydrophobic Coatings: Encourage liquid to bead and run off
  • Vented Membranes: Maintain pressure balance while blocking moisture

Mechanical barriers support a multi-layer defense strategy and help mitigate the consequences of accidental contact with fluids or dust.

Real-World Examples & Case Studies

  1. Diagnostic Monitors
    Patient monitors use sealed overlays and bonded bezels to protect screens. Rubberized gaskets and barrier films help meet IP54 standards while ensuring ease of disinfection.
  2. Infusion Pumps
    These devices are constantly in use and often exposed to cleaning agents. O-rings and silicone gaskets help seal cartridge access doors and user controls.
  3. Portable ECG Units
    Often battery-powered, these devices rely on edge-sealed enclosures and conformal-coated PCBs to maintain performance under mobile conditions.

Conclusion: Key Takeaways for Designers

Ingress protection is not a one-size-fits-all endeavor. It requires:

  1. Early Planning: Consider sealing from the concept phase

  2. Layered Protection: Use gaskets, films, coatings, and barriers together

  3. Material Science: Choose materials based on environment and compliance

  4. Iterative Testing: Simulate cleaning, exposure, and real-world use

By investing in a robust sealing strategy, manufacturers not only meet IP requirements but also deliver safe, reliable tools that healthcare professionals can count on.

Sealing strategies are silent contributors to a device's success. When thoughtfully implemented, they ensure performance doesn't stop even when conditions get messy.
