Printed biometric sensors are transforming how medical and wearable devices capture bioelectric signals from the human body. Unlike rigid, wire-based electrodes, these flexible printed sensors conform to the skin while delivering accurate bioelectric signal monitoring in real time.
To understand how these systems work, we first need clarity on what biometric sensors are and what bioelectric signals are. Once defined, the engineering behind screen-printed electrodes, conductive ink sensors, and real-time biosignal transmission becomes easier to understand.
What Are Biometric Sensors?
Biometric sensors are devices that measure electrical signals generated by the human body. These signals may relate to heart activity, muscle contraction, brain waves, skin impedance, or pressure and strain.
Wearable biometric sensors are designed to maintain skin contact and detect subtle electrical variations. In traditional systems, this required gel electrodes and wired connections. Printed biometric sensors, however, use flexible printed sensors built with thin conductive layers that move naturally with the body.
Because they are lightweight and stretchable, they improve comfort while maintaining consistent electrical contact.
What Are Bioelectric Signals?
Bioelectric signals are naturally occurring electrical impulses generated by cells and tissues in the body. These signals arise from ionic movement across cell membranes and are fundamental to nerve conduction, muscle contraction, and cardiac rhythm.

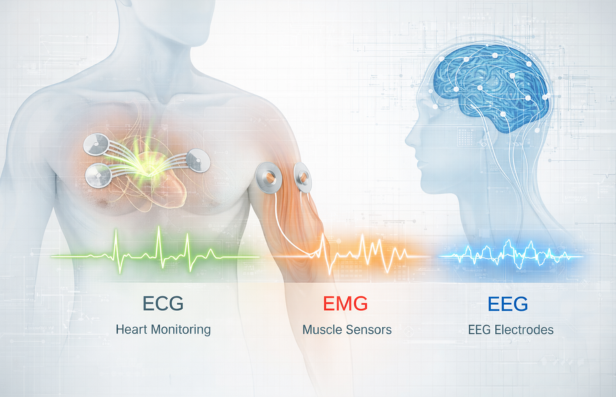

Different types of sensors capture different forms of bioelectric activity:
- ECG sensors measure electrical signals from the heart
- EMG sensors detect electrical activity from muscles
- EEG sensors monitor electrical patterns in the brain
Each signal type varies in amplitude, frequency, and waveform complexity. Accurate bioelectric signal monitoring requires electrodes that maintain stable contact and minimize electrical noise.
For a deeper look at how biometric impulses originate and how they are measured in wearable devices, see our guide on biometric impulses.
How Printed Biometric Sensors Capture Bioelectric Signals
Printed biometric sensors rely on screen-printed electrodes fabricated using conductive ink sensors. These inks may contain silver, silver chloride, carbon, or proprietary conductive blends designed for stable signal acquisition.
When the electrode contacts the skin, it detects voltage differences generated by bioelectric activity. The key engineering challenge is minimizing impedance at the skin interface while preserving flexibility and durability.
Flexible printed sensors conform to skin contours, which reduces motion artifacts and improves signal quality. Unlike rigid metal electrodes, the printed layers bend and stretch with movement, maintaining consistent electrical coupling.
The combination of conductive ink sensors and stretchable substrates enables accurate ECG, EMG, and EEG sensors in wearable formats that are lightweight and nearly invisible to the user.

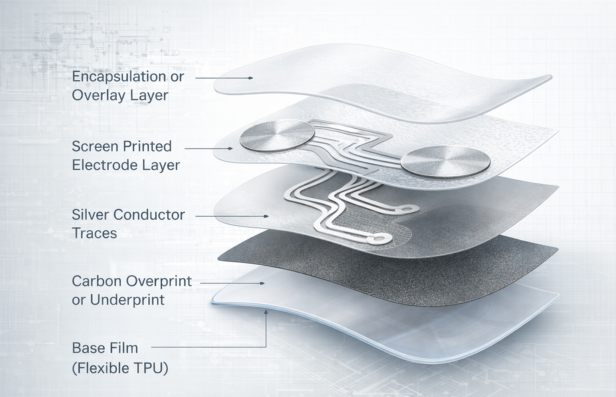

Sensor Layer Construction in Printed Biometric Systems
Printed biometric Sensors are built as multilayer systems. Each layer plays a role in performance, comfort, and durability.
Typical construction includes:
1. Encapsulation or Overlay Layer: A TPU or printed encapsulation layer protects internal circuitry while maintaining flexibility.
2. Electrode Layer: This layer contains the screen printed electrodes formed with conductive ink.
3. Conductor Traces: Silver or carbon traces route signals from the electrode to the connector or embedded electronics.
4. Carbon Overprint or Underprint: Optional layers improve wear resistance and signal consistency.
5. Base Film: Often a stretchable TPU substrate that allows the device to flex naturally with body movement.
6. Optional Fabric Layer: Used in non-permanent applications to enhance comfort and adhesion.
This multilayer biometric sensor construction ensures mechanical durability while preserving signal integrity.
If you want to understand how biometric sensors differ from biosensors used in biological detection systems, read our detailed comparison of biometric sensors vs biosensors.

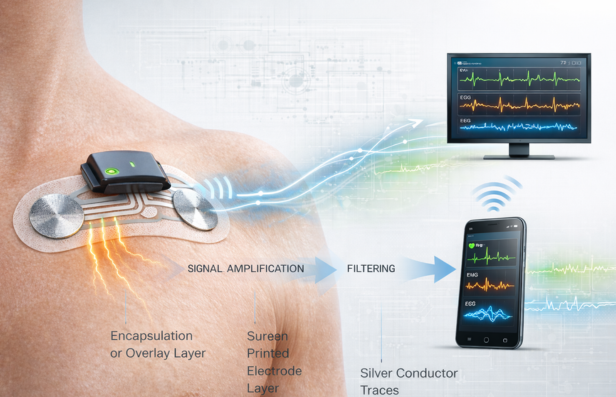

From Signal Capture to Real-Time Biosignal Transmission
Capturing bioelectric signals is only the first step. The signal must then be processed and transmitted.
The electrical potential detected at the electrode is typically low amplitude and susceptible to noise. To ensure accurate bioelectric signal monitoring, systems include:
- Signal amplification
- Noise filtering
- Analog front-end circuitry
- Signal conditioning
After conditioning, the signal is converted into digital form for processing. Real-time biosignal transmission may occur through wired connections or wireless modules integrated into wearable devices.
Wireless wearable biometric sensors often use low-power communication protocols to transmit data to mobile devices or monitoring platforms. This enables remote diagnostics, rehabilitation tracking, and continuous health monitoring.
As healthcare monitoring systems become more connected, modern human-machine interface technologies are playing a key role in how medical data is displayed and interpreted by clinicians and patients. Learn more about this evolution in healthcare systems in this blog on how HMI technology is transforming modern healthcare.
Therapeutic Applications Using Printed Sensors
Printed Biometric Sensors are not limited to passive monitoring. They also support therapeutic applications.
Electrical muscle stimulation EMS uses controlled electrical impulses to stimulate muscle contraction. Printed electrodes can both detect muscle activity and deliver stimulation.
TENS therapy sensors provide transcutaneous electrical nerve stimulation for drug-free pain relief. In these systems, the same flexible printed sensors that detect bioelectric activity can also deliver targeted electrical pulses.
Neuromuscular applications may combine sensing and stimulation in integrated wearable formats, supporting recovery, rehabilitation, and injury prevention.
Because flexible printed sensors eliminate bulky wires and gel pads, they improve patient comfort during extended therapy sessions.
Printed electronics are also increasingly used in pharmaceutical and medical device technologies that require precise sensing, monitoring, and patient-friendly interfaces.
To learn more about how printed electronics support modern drug delivery and pharmaceutical systems, read our blog on pharmaceutical applications of printed electronics.
Advantages of Printed Biometric Sensors Over Traditional Electrodes
Traditional electrodes and wired systems present several limitations.
They often require conductive gels that dry out over time. Wires restrict mobility. Rigid components create discomfort during prolonged use.
Printed Biometric Sensors offer several advantages:
- Lightweight construction
- Stretchable TPU substrates
- Gel-free operation
- Reduced bulk
- Improved user comfort
- Conformability to complex body contours
These characteristics make wearable biometric sensors suitable for continuous monitoring in sports, rehabilitation, and medical environments.
For a broader understanding of how sensing technologies work across modern electronic systems, read our introductory guide on sensors and their applications.
Engineering the Future of Bioelectric Monitoring
Printed Biometric Sensors represent a convergence of material science, electronics engineering, and biomedical design.
By combining screen-printed electrodes, conductive ink sensors, and multilayer flexible substrates, these systems capture Bioelectric Signals with high fidelity while maintaining comfort and durability.
The integration of amplification circuits and real-time biosignal transmission enables seamless connectivity between the body and digital monitoring systems.
As wearable medical devices continue to evolve, flexible printed sensors will play an increasingly important role in both monitoring and therapeutic applications.
Butler Technologies manufactures custom Printed Biometric Sensors using advanced screen printing processes and conductive inks, supporting applications in medical diagnostics, recovery technologies, and wearable health systems.
Frequently Asked Questions (FAQs)
Q. What are biometric sensors used for?
A. Biometric sensors are used to measure electrical signals such as heart rate, muscle activity, brain waves, skin impedance, and pressure variations.
Q. How do flexible printed sensors detect bioelectric signals?
A. Flexible printed sensors use conductive inks printed onto stretchable substrates. When placed on the skin, they detect electrical potential differences generated by the body.
Bioelectric signals are electrical impulses produced by cells and tissues due to ionic movement across cell membranes. These signals regulate key physiological functions such as heart rhythm, muscle contraction, and nerve communication.
Q. How do ECG, EMG, and EEG sensors differ?
A. ECG sensors measure heart activity, EMG sensors detect muscle activity, and EEG sensors monitor brain activity. Each captures different signal characteristics.
Q. How do flexible printed sensors work?
A. Flexible printed sensors use conductive inks printed onto stretchable substrates. When placed on the skin, they detect electrical potential differences generated by the body.
Q. What materials are used in screen-printed electrodes?
A. Common materials include silver, silver chloride, carbon, and proprietary conductive ink blends designed for stable signal acquisition.
Q. How do printed biometric sensors transmit signals?
A. After signal amplification and filtering, data is digitized and transmitted via wired or wireless modules for monitoring and analysis.
Q. What is the difference between EMS and TENS?
A. Electrical muscle stimulation EMS targets muscles to induce contraction. TENS therapy sensors stimulate sensory nerves to reduce pain.
Q. Are wearable biometric sensors comfortable for long-term use?
A. Flexible printed sensors are lightweight and conform to the body, making them more comfortable than rigid wired electrodes for extended wear.
