Printed circuit design is often the quiet force behind every electronic innovation—from medical wearables to military-grade instrumentation. Yet balancing high performance with manufacturability can be a challenge, even for seasoned engineers. A brilliant design that can’t be produced at scale is a missed opportunity.

So, how do you design printed circuits that not only work but also are manufactured smoothly, cost-effectively, and reliably?

This guide walks through best practices for circuit design, rooted in engineering logic, real-world examples, and principles proven across industries.

What Is Design for Manufacturability (DFM)?

Design for Manufacturability (DFM) refers to the engineering process of designing products—in this case, printed circuits—with ease of manufacturing in mind. The objective is to create circuits that:

• Require minimal revisions during fabrication
• Can be produced consistently at scale
• Use materials and layouts optimized for your chosen processes (e.g., screen printing, roll-to-roll)

According to  NIST, early design decisions impact up to 70% of final product cost. That’s why DFM is essential—not just for quality, but for business viability.

Key Principles of Circuit Design

A solid circuit design balances electrical performance, mechanical reliability, and cost efficiency. Before opening CAD software, engineers should define these fundamentals:

1. Electrical Functionality

• Define signal paths and expected current/voltage levels.
• Decide whether you need single-layer or multi-layer circuits.

2. Mechanical Fit and Form

• Is the circuit flat or flexed? Will it bend or conform to surfaces?
• Account for tolerances in your housing or mechanical environment.

3. Environmental Resistance

• Will the circuit be exposed to moisture, vibration, heat, or UV light?
• This influences ink selection, substrate choice, and protective coatings.

For guidance on material selection, see MIT's course on Electronic Materials.

Layout Strategies for Performance and Production

The layout is where performance and manufacturability collide. These tips help streamline both:

A. Trace Design

• Use wider traces for higher current. A general rule is 10 mil per amp.
• Avoid sharp 90-degree corners; use 45-degree bends for smoother current flow.

B. Component Placement

• Cluster related components to shorten traces and reduce EMI.
• Maintain enough clearance for inspection, heat dissipation, and printing accuracy.

C. Pad Design

• Design pad shapes and sizes to match print registration tolerances.
• Include fiducials for machine vision alignment.

D. Layer Planning

• If using multilayer substrates, separate power and signal layers to minimize noise.

Proper layout improves yields and reduces the need for post-production rework.

Material and Substrate Considerations

Choosing the right materials is critical to achieving both performance and manufacturability.

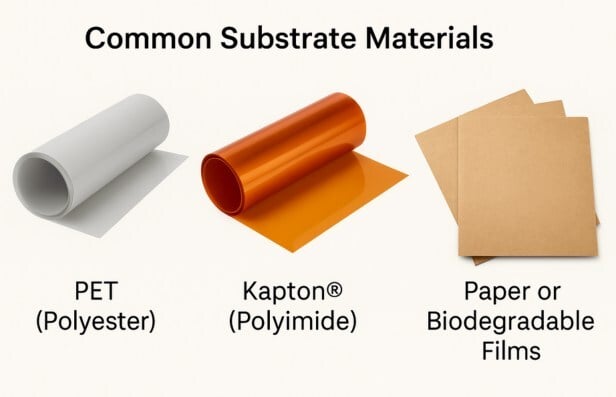

Common Substrate Materials:

• PET (Polyester): Cost-effective, suitable for most low-temp applications.
• Kapton® (Polyimide): Excellent heat and chemical resistance.
• Paper or Biodegradable Films: Emerging options for sustainability.

Conductive Inks:

• Silver ink: High conductivity, but more expensive.
• Carbon ink: Lower cost and great for resistive elements.
• Copper-based ink: Offers balance but may require special sintering conditions.

Make sure to evaluate curing temperatures and compatibility with substrate materials.

For further technical comparisons, refer to NASA's guide on flexible electronics.

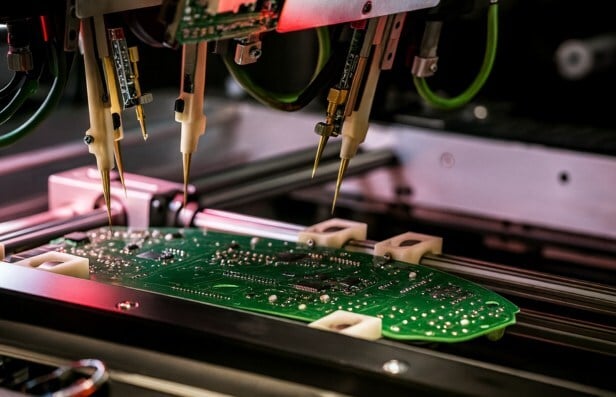

Design for Testing and Inspection

Designing with inspection in mind saves significant time in QA and reduces undetected faults.

Strategies:

• Include test points for continuity, resistance, and function checks.
• Ensure test pads are accessible and not obstructed by mechanical features.
• Design circuits for in-line testing methods such as AOI (automated optical inspection).

In functional printed electronics, resistance and print integrity testing are just as vital as electrical continuity.

Collaborating with Manufacturing Teams Early

Bringing your fabricator into the design loop early avoids last-minute surprises.

Key Conversations to Have:

• What are the manufacturer’s minimum trace widths and spacings?
• What curing methods (UV, heat, IR) do they use?
• What inspection tools do they support (camera systems, pin testing, etc.)?

Collaborative design shortens lead times and increases your first-pass yield.

See IPC standards for design guidelines commonly used across electronics manufacturing.

Common Pitfalls in Printed Circuit Design

Even experienced engineers can fall into these traps:

1. Overlooking Print Orientation: In roll-to-roll or screen printing, orientation affects alignment and ink distribution.


2. Neglecting Shrinkage or Stretch: Flexible substrates expand or contract during curing, which can shift fine features.


3. Poor Pad Tolerance: Undersized or misaligned pads lead to open circuits.


4. Skipping Simulations: Failing to simulate thermal or mechanical stress can lead to in-field failures.



Use DRC (Design Rule Checks) tools early and often during layout.

Case Study: A Printed Sensor Application

An industrial client needed a custom pressure sensor embedded in a flexible housing. The initial design used ultra-thin silver ink traces on PET.

Challenges Faced:

• Ink bleeds during curing
• Uneven sensor response across pressure zones

Solutions Applied:

• Switched to carbon ink for consistency
• Adjusted print orientation and mask alignment
• Introduced spacing buffers and thicker perimeter traces

The redesigned sensor passed environmental testing and entered mass production within six weeks.

Industry Standards and Resources

Printed circuit design must adhere to industry standards to ensure safety, reliability, and interoperability.

Relevant Standards:

• IPC-2221: Generic standard on PCB design.
• ISO 9001: Quality management system requirements.
• ASTM D257: Resistance of insulating materials.
• UL 796: Printed wiring boards standard.

For design documentation, templates, and further reading, explore Standards.gov.

Conclusion

Printed circuit design is equal parts engineering precision and real-world pragmatism. The best designs are not just functional on paper but perform reliably in the environments they serve—and can be manufactured efficiently.

Whether you’re designing a smart medical patch or an automotive sensor array, keeping manufacturability in mind from the beginning can save costs, improve product lifecycle, and accelerate time to market.
