Summary

Pressure Sensitive Adhesives (PSAs) play a critical role in ensuring reliable bonding for user interface products such as labels, overlays, and membrane switches. Selecting the correct adhesive depends on surface compatibility, environmental conditions, and application design.

In this blog, you’ll learn:

• What pressure sensitive adhesives are and how they function in UI applications
• The four key factors that determine correct adhesive selection
• How surface material (LSE vs HSE) impacts adhesion performance
• How surface texture, flatness, and curvature affect bonding reliability
• How environmental conditions like temperature, chemicals, and moisture influence adhesive performance
• Additional considerations such as mounting orientation, flame resistance, and outgassing

Pressure sensitive adhesives are essential for ensuring long-term durability, performance, and reliability in modern electronic and industrial interface systems.

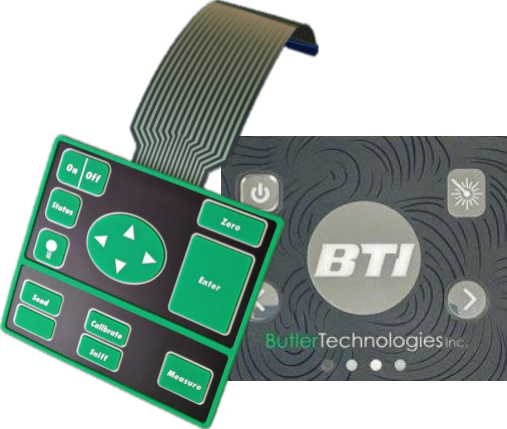

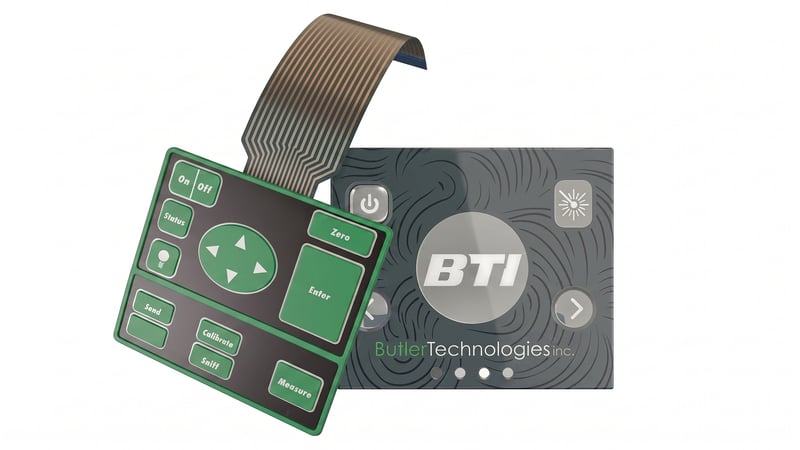

User interface products such as membrane switches, graphic overlays, labels, and instrument panels rely heavily on pressure sensitive adhesives for proper bonding.

These components are often made from polyester, polycarbonate, vinyl, or rigid acrylic. While the materials themselves are important, the adhesive selection determines whether the product performs reliably over time.

Choosing the wrong adhesive can lead to:

• Delamination
• Edge lifting
• Failure under environmental stress

To avoid this, engineers must evaluate key factors before selecting a PSA.

What Are Pressure Sensitive Adhesives

Pressure sensitive adhesives are bonding materials that adhere to surfaces when light pressure is applied.

They do not require:

• Heat
• Solvents
• Chemical activation

Instead, they create a bond based on:

• Surface contact
• Material compatibility
• Environmental resistance

PSAs are widely used in:

• Labels
• Membrane switches
• Graphic overlays
• Instrument clusters

The 4 Key Factors in PSA Selection

Selecting the correct adhesive depends on four critical factors:

• Mounting surface material
• Surface finish and flatness
• Surface curvature
• Operating environment

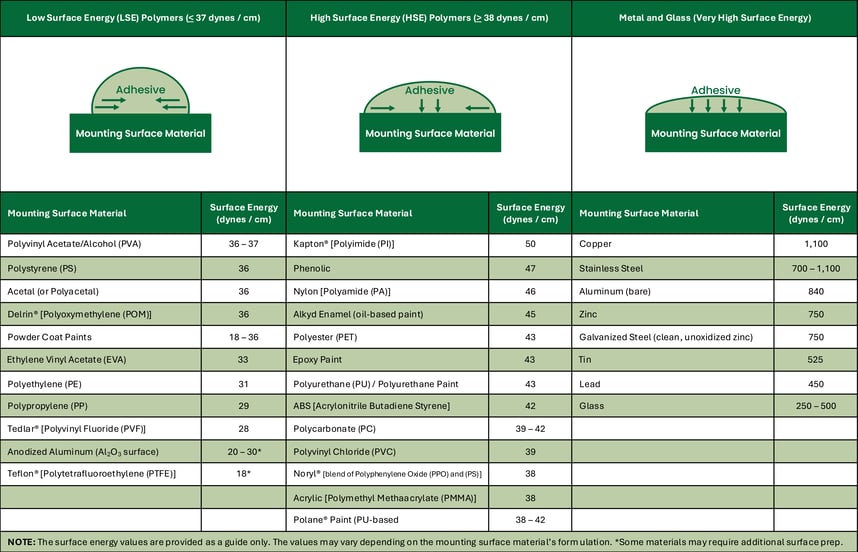

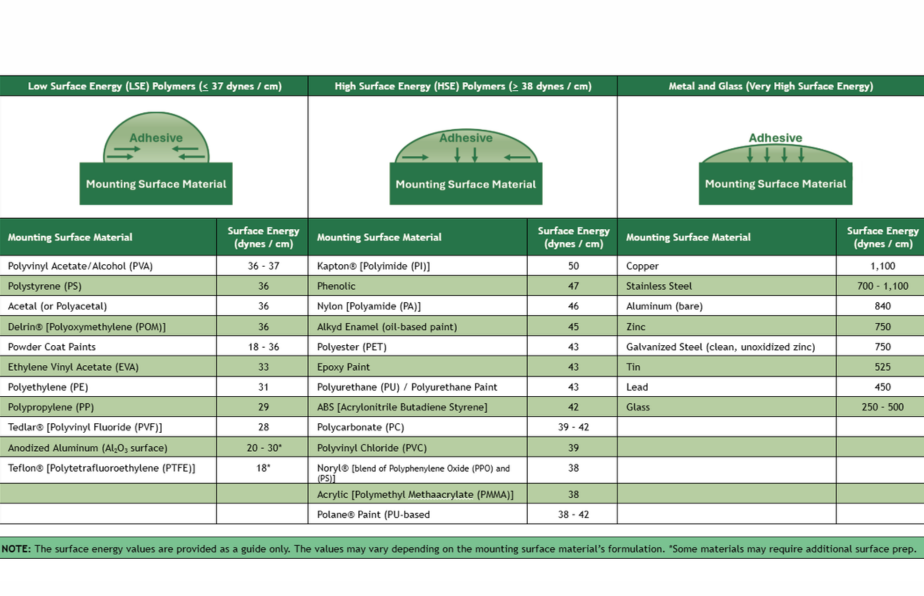

1. Mounting Surface Material

The most common mistake in adhesive selection is not identifying the surface material correctly.

Surfaces typically fall into two categories:

• Low Surface Energy (LSE) materials
• Polypropylene (PP)
• Polyethylene (PE)
• Difficult to bond


• High Surface Energy (HSE) materials
• Polycarbonate (PC)
• Metals
• Easier to bond

Key insight:

• LSE adhesives can work on HSE surfaces
• But they increase the cost unnecessarily

Also consider:

• Mold release agents
• Surface coatings
• Material outgassing

These can reduce adhesion performance.

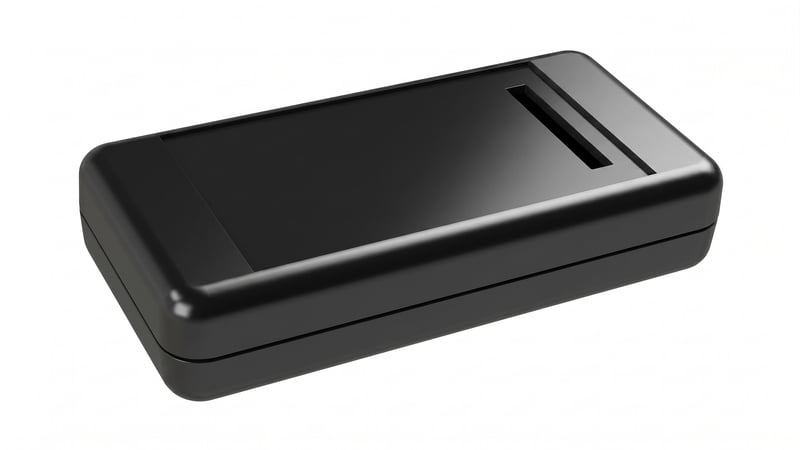

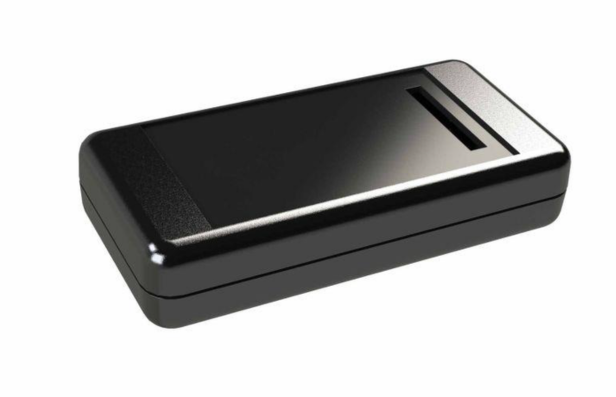

2. Surface Finish and Flatness

Surface texture directly affects adhesive thickness.

• Smooth surfaces → Thin adhesive (~2 mil)
• Textured surfaces → Thick adhesive (3–5 mil)

Why this matters:

Thicker adhesives:

• Fill surface irregularities
• Increase the bonding area

Flatness also plays a role.

Rigid components may require:

• Thicker PSA
• Foam adhesive

To compensate for uneven surfaces.

3. Surface Curvature

Curved surfaces introduce mechanical stress that impacts adhesion.

• Thin labels conform easily
• Rigid overlays resist bending
• Edges may lift before bonding completes

For curved applications:

• Use high initial tack adhesives
• Prevent early edge lifting
• Ensure full bond development

This is especially important for:

• Thick overlays
• Membrane switches
• Rigid interface panels

4. Operating Environment

Environmental conditions define long-term adhesive performance.

Temperature

• Up to 400°F short-term
• ~300°F long-term
• Specialized adhesives up to 500°F+

Chemical Exposure

Adhesives must withstand:

• Oils
• Mild acids
• Alkalis

Moisture and UV

• Minimal impact when protected
• High humidity generally does not degrade performance significantly

However:
Always verify through technical datasheets.

Additional Factors to Consider

Beyond the core four factors, additional considerations may impact adhesive selection.

• Flame Retardancy

Required in:

• Transportation
• Aerospace
• Rail and bus systems

Adhesives must meet specific fire safety standards.

• Mounting Orientation

For vertical or angled applications:

• Use adhesives with high shear strength
• Prevent sliding before full bonding

3. Outgassing

Critical for:

• Electronics
• Automotive systems
• Aerospace

Low-outgassing adhesives:

• Prevent contamination
• Protect sensitive components

How to Choose the Right PSA

To select the correct adhesive:

• Identify surface material (LSE vs HSE)
• Evaluate surface texture and flatness
• Assess curvature
• Define environmental conditions
• Review technical datasheets

Always consult with your adhesive supplier or UI partner before final selection

Common Mistakes to Avoid

• Ignoring surface energy differences
• Using thin adhesive on textured surfaces
• Overlooking curvature effects
• Not validating environmental conditions
• Skipping datasheet verification

Final Takeaway

There is no universal pressure sensitive adhesive.

The right choice depends on:

• Material compatibility
• Surface characteristics
• Environmental exposure
• Application design

Selecting the correct PSA early ensures:

• Strong adhesion
• Long-term durability
• Reliable product performance

FAQs

What is a pressure sensitive adhesive?

A bonding material that adheres with applied pressure without heat or solvents.

What is the most important factor in PSA selection?

Surface material (LSE vs HSE).

Can one adhesive work for all applications?

No. Adhesive selection depends on surface, environment, and design.

Why do adhesives fail on curved surfaces?

Rigid materials create stress and require high-tack adhesives.
