Laser cutting, die cutting, and shear cutting are three common cutting methods used in manufacturing, but each serves a different purpose. Laser cutting is best for precision, detailed geometries, prototypes, and applications where design flexibility matters. Die cutting is ideal for repeatable, high volume production where consistency and cost efficiency are important. Shear cutting is best for simple straight cuts, trimming, sheet sizing, and material preparation.

In this blog, you’ll learn:

• What are laser cutting, die cutting, and shear cutting
• How each cutting method works
• The key differences between laser cutting vs die cutting vs shear cutting
• When to use laser cutting for precision and complex parts
• When to use die cutting for repeatable high volume production
• When to use shear cutting for simple straight-line cuts
• How material type, thickness, tolerance, and production volume affect process selection
• Common mistakes to avoid when choosing a cutting method

Choosing the right cutting method improves product quality, reduces waste, controls costs, and supports efficient manufacturing from prototype to production.

Cutting is one of the most important steps in manufacturing. Whether you are producing membrane switches, graphic overlays, labels, gaskets, panels, or precision components, the cutting method directly affects the final part’s quality, accuracy, cost, and production efficiency.

Laser cutting, die cutting, digital knife cutting, and shear cutting are four commonly used cutting methods, but they are not interchangeable. Each process has a different purpose. Laser cutting is known for precision and design flexibility. Die cutting is preferred for repeatable, high-volume production. Digital knife cutting is well-suited for heat-sensitive materials and complex shapes without tooling costs. Shear cutting is used when simple, straight cuts are needed quickly and economically.

Understanding the difference between laser cutting, die cutting, and shear cutting helps engineers, product designers, and manufacturers choose the right process early in development.

What Are Laser, Digital Knife, Die, and Shear Cutting?

Laser Cutting

Laser cutting is a non contact cutting process that uses a focused laser beam to cut through material. The laser generates heat at a specific point, which melts, burns, or vaporizes the material along the programmed cutting path.

Laser cutting is commonly used when parts require:

• Fine details
• Tight tolerances
• Complex shapes
• Internal cutouts
• Clean edge quality
• Flexible design changes

This method is especially useful for prototypes, low-volume production, precision components, electronics, medical parts, and printed electronics applications.

Digital Knife Cutting

Digital knife cutting is a non-contact, tooling-free cutting process that uses a computer-controlled blade to cut material along a programmed path. Unlike laser cutting, it uses a physical knife rather than thermal energy, which makes it ideal for heat-sensitive materials that cannot tolerate the heat generated by a laser.

Digital knife cutting is commonly used for:

• Thin, flexible materials (0.002” to 0.010” thick, no including any adhesive release liners)
• Vinyl labels (where laser cutting releases dangerous Chlorine gas)
• Kiss-cut labels and overlays (multiple parts cut onto a single release liner)
• Prototypes requiring complex geometry without tooling investment
• Short runs where design flexibility is needed

At Butler Technologies, digital knife cutting is one of the primary cutting methods used for interface components and specialty materials, making it highly relevant to the products and applications we support.

Die Cutting

Die cutting is a mechanical cutting process that uses a custom die to cut material into a specific shape. The die acts like a sharp tool that presses into the material and separates it according to the required design.

Die cutting is commonly used for:

• Membrane switches
• Graphic overlays
• Labels
• Adhesive layers
• Gaskets
• Seals
• Insulating films
• Flexible components

It is especially valuable for repeatable, high-volume production because once the die is made, the same part can be produced quickly and consistently.

Shear Cutting

Shear cutting is a mechanical cutting method that uses two blades to cut material along a straight line. One blade applies force while the other supports the material, causing the material to separate.

Shear cutting is commonly used for:

• Sheet sizing
• Straight edge trimming
• Panel preparation
• Material preparation
• Basic fabrication tasks

It is not designed for complex shapes, internal cutouts, tight-tolerance applications, or detailed geometries.

How Each Cutting Method Works

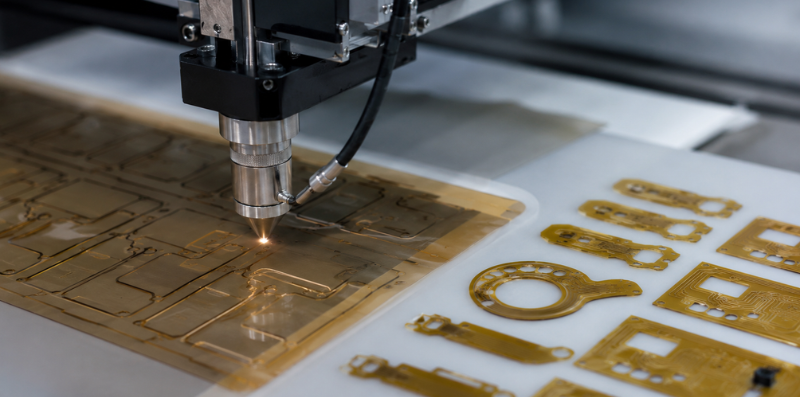

Laser Cutting

Laser cutting works through a controlled thermal process.

1. A focused laser beam is directed onto the material surface.
2. Heat melts, burns, or vaporizes the material along the programmed path.
3. The system follows a digital file to create the required shape.
4. The final part is produced with clean and precise edges.

Because laser cutting does not physically touch the material, there is less mechanical stress during cutting. This makes it useful for delicate parts, thin materials, and detailed designs.

The main consideration is heat. Since laser cutting uses thermal energy, some materials may experience heat-affected edges, discoloration, or melting if the process is not properly controlled.

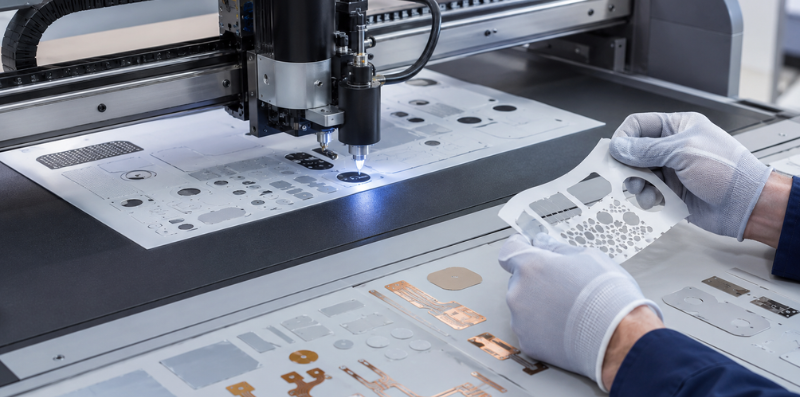

Digital Knife Cutting

Digital knife cutting works through a precision blade guided by a computer-controlled cutting system.

• Material is placed on the cutting bed.
• A sharp blade follows a digitally programmed cutting path.
• The blade cuts through the material without applying heat.
• Complex shapes, curves, and internal features are all achievable.
• No physical die or tooling is required.

Because digital knife cutting uses mechanical blade force rather than heat, it avoids the heat-affected zones associated with laser cutting. This makes it well-suited for materials that are heat-sensitive or emit fumes when exposed to a laser.

Typical cut-to-print tolerances of +/- 0.005 inch can be held depending on material thickness, making it a reliable choice for tight-tolerance applications where heat exposure is a concern.

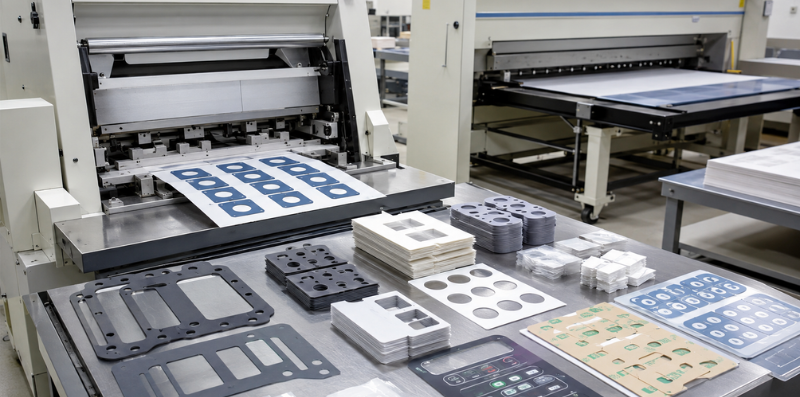

Die Cutting

Die cutting works through mechanical pressure and custom tooling.

1. Material is placed under or between the cutting die.
2. Mechanical pressure is applied to the die.
3. The die cuts the material into the required shape.
4. The same shape can be repeated consistently across production runs.

Die cutting can be used for full cuts, kiss cuts, layered cuts, and repeatable part shapes. This makes it especially useful for layered materials such as adhesives, films, labels, overlays, and membrane switches components.

The main limitation is tooling. If the design changes, the die may need to be modified or replaced.

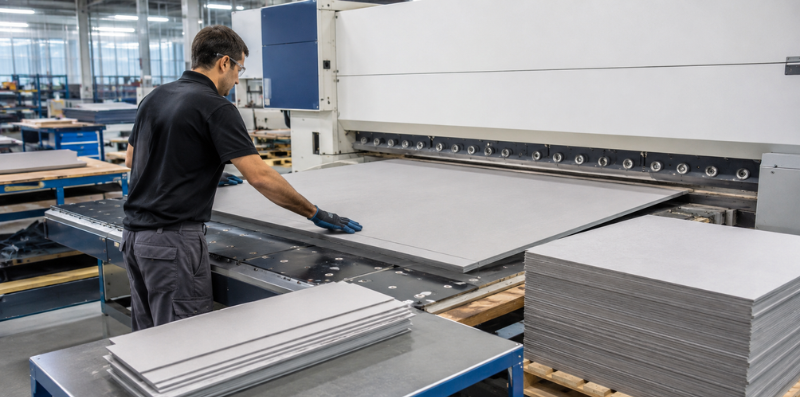

Shear Cutting

Shear cutting works through a straight line of blade force.

1. Material is positioned between two blades.
2. Force is applied along a straight cutting line.
3. The material separates through shearing action.
4. The result is a fast, straight line cut.

Shear cutting is simple, fast, and cost-effective. It is often used before other fabrication steps to prepare the material to the correct size.

Its limitation is shape complexity. Shear cutting is not suitable for curves, holes, internal cutouts, or detailed patterns.

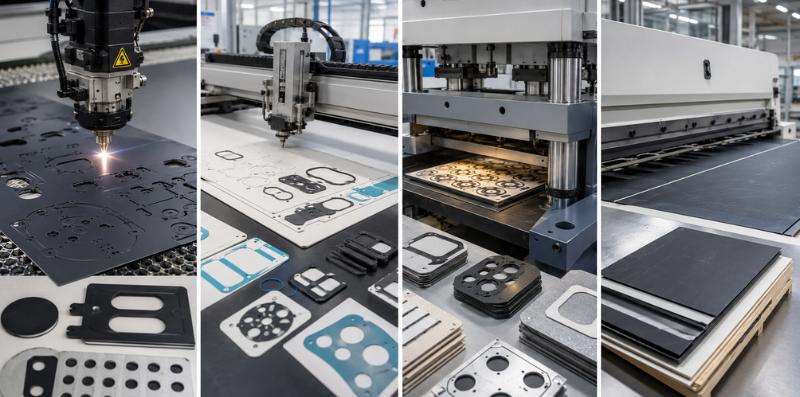

Laser vs Digital Knife vs Die vs Shear Cutting Comparison

Precision

Laser cutting offers the highest precision of the three methods. It can create detailed shapes, small features, and tight tolerances.

Digital Knife cutting provides strong precision for many flexible materials, especially films, adhesives, foams, gaskets, and printed components. It is well-suited for detailed cuts, kiss cutting, scoring, and low to medium tolerance parts without the need for hard tooling.

Die cutting provides consistent results once tooling is created, but its precision depends on die quality, material behavior, and production setup.

Shear cutting is accurate for straight cuts but is not intended for detailed or complex parts.

Design Flexibility

Laser cutting offers the most flexibility because changes can be made through a digital file. No physical tooling is required.

Digital Knife cutting also offers excellent design flexibility because part shapes can be adjusted digitally without creating a physical die. This makes it useful for prototypes, design revisions, custom shapes, and short-run production where changes may be needed.

Die cutting is less flexible because the die is made for a specific shape. If the design changes, tooling changes may be required.

Shear cutting has the least design flexibility because it is limited to straight-line cuts.

Production Speed

Die cutting is usually the fastest method for repeated part production. Once tooling is ready, large quantities can be produced efficiently.

Shear cutting is also fast for simple straight cuts and material preparation.

Laser cutting can be slower for high-volume production, especially when the design includes many details or long cutting paths.

Digital Knife cutting is generally faster than laser cutting for many flexible materials and short-run jobs. It is efficient for prototypes, samples, and production runs that do not justify die tooling. However, it may not match the die-cutting speed for very high volume repeat production.

Production Volume

Laser and Digital-knife cutting is best for:

• Prototypes
• Short runs
• Low to medium volume production
• Parts with changing designs

Die cutting is best for:

• Medium to high volume production
• Repeatable shapes
• Finalized designs
• Parts requiring consistent output

Shear cutting is best for:

• High-speed straight cuts
• Material sizing
• Trimming
• Basic fabrication

Cost Efficiency

Laser and Digital-knife cutting can be cost-effective during prototyping because no tooling is required. However, the per-part cost may be higher for large production runs.

Die cutting requires upfront tooling, but the per-part cost becomes efficient at volume.

Shear cutting is usually the lowest cost method for simple straight cuts.

When to Use Laser Cutting

Laser cutting is the right choice when precision and flexibility are more important than high-speed production.

Use laser cutting when:

• The part has complex geometry
• Tight tolerances are required
• You are producing prototypes or short runs
• The design may change during development
• The part requires fine details or internal cutouts
• Tooling cost needs to be avoided early in the project
• Edge quality and accuracy are important

Laser cutting is often used in electronics, printed electronics, medical components, prototypes, and tight-tolerance applications.

When to Use Digital Knife Cutting

Digital knife cutting is the right choice when the material is heat-sensitive, the design is complex, and tooling investment needs to be avoided.

Use digital knife cutting when:

• Thin materials, typically 0.002” to 0.010” thick (not including any PSA release liners).
• The part requires complex shapes, curves, or cutouts
• You are in the prototyping phase, and the design may still change
• No die tooling budget is available
• The application requires clean cuts without heat-affected zones (material is heat sensitive).
• The material emits fumes or reacts poorly to laser energy, such as PVC / vinyl.
• Short to medium production runs are required

Digital knife cutting is a core capability at Butler Technologies and is particularly well-aligned with the materials and applications we work with across interface components, gaskets, overlays, and printed electronics.

When to Use Die Cutting

Die cutting is the right choice when repeatability, speed, and volume are priorities.

Use die cutting when:

• The part design is finalized
• High-volume production is needed
• A consistent part shape is required
• Lower unit cost matters
• The material is flexible or layered
• The part includes adhesives, films, labels, overlays, or gaskets
• Production speed and repeatability are important

For membrane switches and graphic overlays, die cutting is often preferred once the design is stable because it supports efficient scaling and consistent production.

When to Use Shear Cutting

Shear cutting is the right choice when the cut is simple and straight.

Use shear cutting when:

• Material needs to be trimmed or resized
• Straight line cuts are sufficient
• Speed and low cost are priorities
• The material is being prepared for another process
• Complex shapes are not required
• Tight tolerance features are not the main priority

Shear cutting is common in sheet processing, panel preparation, and basic fabrication work.

Design and Manufacturing Considerations

Choosing between laser cutting, die cutting, and shear cutting should not be based on cost alone. The best method depends on how the part will be used, how it is designed, and how many units need to be produced.

Key factors to consider include:

• Material type
• Material thickness
• Required tolerance
• Shape complexity
• Production volume
• Tooling budget
• Lead time
• Edge quality requirements
• Scalability needs
• Environmental performance requirements

For example, a prototype may be laser cut during early development because the design is still changing. Once the design is finalized and production volume increases, die cutting may become a better option. If only straight material sizing is needed, shear cutting may be the most efficient method.

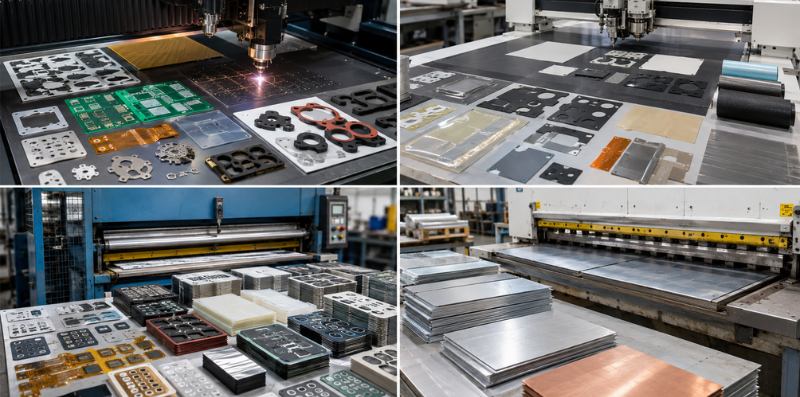

Applications Across Industries

1. Laser Cutting Applications

Laser cutting is used when precision, detail, and flexibility are important.

Common applications include:

• Electronic components
• Printed electronics
• Medical device components
• Aerospace parts
• Precision industrial components
• Prototypes
• Custom parts
• Thin films and flexible materials
• Custom gaskets and seals from foam rubber

It is especially useful when the part includes complex geometry, internal features, or tight tolerance requirements.

2. Digital Knife Cutting Applications

Digital knife cutting is used when heat-sensitive materials or complex shapes need to be cut without tooling investment. Common applications include:

• Heat-sensitive overlay and film components
• PVC and specialty plastic components where laser fumes are a concern
• Prototyping for interface components and graphic overlays
• Short to medium run production of custom shapes
• ESD shields and flame-retardant insulators requiring precise cutting

3. Die Cutting Applications

Die cutting is used when repeatability, speed, and high-volume production are important.

Common applications include:

• Membrane switches
• Graphic overlays & Labels
• Gaskets
• Seals
• Adhesive components
• Insulating films
• Flexible circuits
• Foam components

It is especially useful for layered materials and production runs where the same part must be produced consistently.

4. Shear Cutting Applications

Shear cutting is used for simple straight-line cuts and material preparation.

Common applications include:

• Sheet metal sizing
• Panel trimming
• Material preparation
• Straight-edge cutting
• Fabrication blanks
• Large sheet reduction
• Pre-processing before secondary operations

It is best suited for applications where speed and low cost matter more than complex geometry.

Common Mistakes to Avoid

1. Choosing based only on cost: A lower cost method can become expensive if it creates poor edge quality, inconsistent parts, or production delays.
2. Using laser cutting for every application: Laser cutting is highly precise, but it may not be the most economical choice for high-volume repeat parts.
3. Using die cutting too early in development: If the design is still changing, creating tooling too early can lead to added cost and delays.
4. Using shear cutting for complex designs: Shear cutting is practical for straight cuts, but it should not be used for curves, holes, or detailed shapes.
5. Ignoring material behavior: Different materials respond differently to heat, pressure, and blade force. Material behavior must guide process selection.
6. Waiting too long to choose the cutting method: Cutting method selection should happen early because it affects design, tolerances, cost, and manufacturability.

Key Takeaways

• Laser cutting is best for precision, complex shapes, prototypes, and flexible design changes.
• Die cutting is best for repeatable high-volume production, especially for flexible materials, adhesives, overlays, labels, and gaskets.
• Shear cutting is best for simple straight cuts, trimming, and material preparation.
• Laser cutting offers the most design flexibility, but die cutting is usually more efficient at scale.
• Shear cutting is the simplest and most economical option for basic straight-line cutting.
• The right cutting method depends on material type, part geometry, tolerance, production volume, and cost requirements.

How We Help at Butler Technologies

At Butler Technologies, Inc. (BTI), we help customers select the right manufacturing and cutting processes based on real application requirements. Our team works with materials, printed electronics, membrane switches, graphic overlays, labels, and precision components where process selection directly affects performance and manufacturability.

From early prototyping to full-scale production, we help customers balance quality, durability, cost, and scalability. Whether the application requires laser cutting, die cutting, shear cutting, or a combination of processes, we help ensure the final part is built for real-world performance.

Frequently Asked Questions (FAQs)

What is the difference between laser cutting and die cutting?

Laser cutting uses a focused laser beam to cut material without physical tooling. Die cutting uses a custom die to mechanically cut material into a repeated shape. Laser cutting is better for precision and design flexibility, while die cutting is better for high-volume repeatability.

What is digital knife cutting, and how is it different from laser cutting?

Digital knife cutting uses a computer-controlled blade to cut material along a programmed path, without using heat. Laser cutting uses thermal energy. Digital knife cutting is preferred for heat-sensitive materials that cannot tolerate the temperatures generated by a laser, while both methods offer similar design flexibility without tooling.

When should laser and digital knife cutting be used?

Laser cutting and digital knife cutting should be used when the part requires complex shapes, fine details, tight tolerances, prototypes, short runs, or frequent design changes.

When should die-cutting be used?

Die cutting should be used when the design is finalized, and parts need to be produced repeatedly at higher volumes. It is commonly used for labels, gaskets, adhesives, membrane switches, and graphic overlays.

When should shear cutting be used?

Shear cutting should be used for simple straight cuts, trimming, sheet sizing, and material preparation. It is not ideal for complex shapes or high-precision features.

Which cutting method is best for manufacturing?

The best cutting method depends on the application. Laser cutting is best for precision and design flexibility. Die cutting is best for scale and repeatability. Shear cutting is best for simple, low-cost straight cuts.
