Force Sensing Resistors (FSR) are thin-film devices that convert applied pressure into a measurable change in electrical resistance. An FSR sensor operates on a simple principle: as force increases, resistance decreases predictably. This behavior allows engineers to translate mechanical pressure into electrical signals that can be processed by control systems, microcontrollers, and human-machine interfaces.

Understanding how force-sensing resistors work requires looking at material structure, force-to-resistance conversion physics, and electrical circuit integration. When properly designed and conditioned, these sensors become reliable components in industrial controls, medical devices, consumer electronics, and HMI force sensor applications.

What Are Force Sensing Resistors?

Force Sensing Resistors are variable resistance sensor devices designed to respond to applied pressure. Unlike load cells that measure force through strain and mechanical deformation of metal structures, a pressure-sensing resistor changes electrical resistance based on compression of conductive materials.

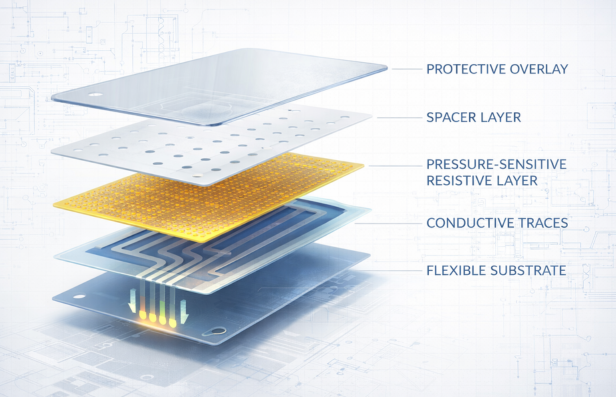

An FSR sensor is typically constructed as a thin-film force sensor consisting of:

• A flexible substrate
• Conductive traces
• A pressure-sensitive resistive layer
• Spacer or adhesive layers
• Protective overlay

When no force is applied, the resistive layer exhibits high resistance. As pressure increases, conductive particles within the material move closer together, reducing resistance. This makes the device a resistive pressure sensor capable of detecting relative force levels.

Force sensing resistors are not typically used for high-precision weight measurement. Instead, they excel in applications where detecting touch, pressure thresholds, or relative force changes is required.

How Force Sensing Resistors Work

To understand how force-sensing resistors work, focus on force-to-resistance conversion.

Inside a thin-film force sensor, the active layer contains a semiconductive material. When pressure is applied, the contact area between conductive elements increases. This reduces the overall electrical resistance across the sensor.

In simplified terms:

• More force results in lower resistance.
• Less force results in higher resistance.

This relationship is nonlinear but repeatable within the design range. Engineers calibrate the sensor response curve based on application requirements.

Because the sensing element is flexible, printed force sensors can conform to curved or dynamic surfaces. Flexible force sensors maintain performance even when mounted on non-rigid substrates, making them suitable for modern industrial interface designs.

For a deeper explanation of the sensing principle and how FSR sensors detect pressure and touch in practical applications, see this guide on how force sensing resistors measure pressure and touch.

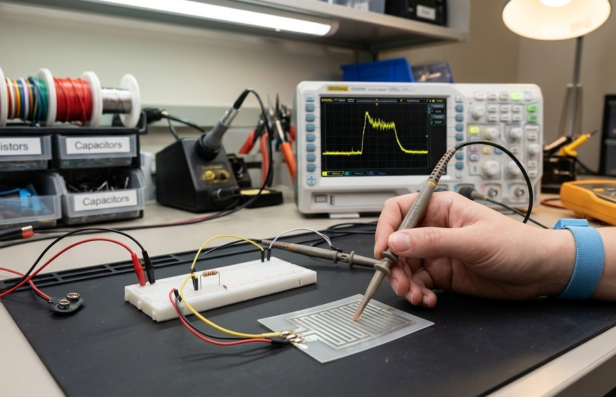

Electrical Output and Circuit Integration

An FSR sensor does not output voltage directly. It outputs resistance. To convert resistance into a measurable voltage, engineers commonly use a voltage divider circuit for FSR integration.

In a voltage divider configuration:

• The FSR sensor is connected in series with a fixed resistor.
• As force changes resistance, the voltage across the fixed resistor changes proportionally.
• This varying voltage can then be measured by an analog-to-digital converter.

The voltage divider circuit for FSR is simple, cost-effective, and widely used in embedded electronics.

However, raw signals may require signal conditioning for FSR applications. Signal conditioning includes:

• Amplification
• Filtering to remove electrical noise
• Linearization techniques
• Analog to digital conversion

Proper signal conditioning ensures stable and interpretable output, especially in industrial environments where electrical interference may be present.

Printed and Flexible Force Sensors

Modern Force Sensing Resistors are often manufactured as printed force sensors using screen printing techniques and conductive inks.

Printed force sensors offer several advantages:

• Low-profile construction
• Lightweight form factor
• Flexible substrate compatibility
• Scalable manufacturing

Flexible force sensors can be integrated directly into overlays, panels, or user interface layers. This makes them ideal for HMI force-sensor designs that require touch-pressure feedback.

A thin-film force sensor can be layered into a control panel assembly without adding bulk. Because it can bend and flex, it adapts to complex geometries and moving components.

Printed electronics manufacturing also allows customization of sensor shape, force range, and electrical routing. This flexibility makes Force Sensing Resistors attractive for OEM product development.

Force Sensing Resistor vs Load Cell

The comparison between a force sensing resistor vs load cell is common in design discussions.

A load cell measures force through strain gauges bonded to a deformable metal structure. It provides high accuracy and linearity, making it suitable for precision weight measurement.

In contrast, a pressure-sensing resistor measures relative force through material compression and resistance change. It is typically:

• Less accurate than a load cell
• More compact
• Lower cost
• Easier to integrate into thin assemblies

When deciding between a force sensing resistor vs load cell, engineers consider:

• Required accuracy
• Space constraints
• Cost targets
• Environmental conditions
• Force range

Force Sensing Resistors are preferred when detecting touch pressure, grip force, or presence sensing rather than precise mass measurement.

Many engineers also evaluate the differences between pressure-sensitive resistors and strain-based sensors when selecting force detection technologies. A deeper explanation is covered in force sensing resistors vs strain gauges.

Applications in Industrial and Interface Design

Force Sensing Resistors (FSR) are widely used in HMI force sensor applications and beyond.

Common uses include:

• Industrial control panels
• Touch pressure detection interfaces
• Robotics grip sensing
• Medical device pressure detection
• Consumer electronics input systems
• Automotive interface panels

In human-machine interface systems, flexible force sensors allow designers to detect how firmly a button or surface is pressed. This can improve user interaction and safety.

Because printed force sensors can be embedded beneath overlays or graphic panels, they enable clean, sealed interface designs without mechanical switches.

Engineering Considerations for Reliable Force Measurement

Designing with Force Sensing Resistors requires understanding material behavior and electrical integration.

Key considerations include:

• Force range calibration
• Environmental exposure, such as humidity and temperature
• Long-term mechanical fatigue
• Proper voltage divider circuit selection
• Signal conditioning for FSR stability
• Mechanical mounting and load distribution

Force-sensing resistors respond best when the force is evenly distributed across the active sensing area. Uneven pressure may cause inconsistent readings.

Engineers must also consider the nonlinear response curve and incorporate calibration algorithms where necessary.

Printed force sensors manufactured using thin-film techniques can be tailored for specific actuation ranges and integration geometries. Butler Technologies produces custom-printed and flexible force sensors designed for integration into industrial and electronic assemblies where low-profile, reliable pressure detection is required.

Frequently Asked Questions (FAQs)

Q. What is a force sensing resistor?

Q. How does an FSR sensor work?

Q. How accurate are force sensing resistors?

Q. What is the difference between FSR and a load cell?

Q. How do you connect an FSR sensor to a microcontroller?

A. An FSR sensor is typically connected using a voltage divider circuit. The changing voltage is read by an analog input on the microcontroller.

Q. What is signal conditioning for FSR?

Q. Are printed force sensors durable?

Q. Where are flexible force sensors used?
