A dial or gauge is only useful if an operator can read it quickly and correctly. Readability, the combination of contrast, legibility, scale design, layout, and lighting, directly shapes how fast and how accurately an operator makes decisions. When a gauge is hard to read, decisions slow down, errors rise, and safety suffers. This blog explains how readability affects operator decision-making and the design features that make dials and gauges easier to interpret.

In this blog, you'll learn:

• Why readability determines an operator's reaction speed and accuracy
• The specific factors that make a dial or gauge readable
• How poor readability increases delay, misreads, and risk
• Design features, backlighting, embossing, deadfronting, and specialty inks that improve readability
• How to keep gauges readable in sunlight, low light, and harsh conditions
• How Butler Technologies, Inc. (BTI) designs readable, decision-ready instrument clusters

Getting readability right is what separates a gauge an operator reads instantly from one that slows them down or invites a misread, and this guide gives you a clear way to design for it.

A dial or gauge is the operator's window into a machine. In a fraction of a second, a driver, pilot, or equipment operator has to glance at it, read a value, and decide what to do. When that reading is clear, the decision is fast and correct. When it is not, the decision is delayed, second-guessed, or wrong.

That is why readability is not a cosmetic detail. It is a human factors problem that directly affects reaction time, accuracy, and safety. This guide looks at how dial and gauge readability shapes operator decision-making and the design choices that lead to faster interpretation.

Why Readability Drives Operator Decision-Making

Every decision an operator makes starts with reading an instrument. Readability affects three things at once:

• Glance time: how quickly the eye can find and read the value
• Cognitive load: how much mental effort it takes to interpret it
• Accuracy: whether the operator reads the correct value under pressure

A readable gauge lets an operator perceive a condition, safe, caution, or critical, almost instantly, without stopping to analyze numbers. A hard-to-read gauge forces a longer look and more thinking, which is exactly what you cannot afford in a moving vehicle or a fast-changing process.

What Makes a Dial or Gauge Readable

Readability comes from several design factors working together.

Contrast and Color

Strong color contrast between markings, background, and pointer is the single biggest driver of legibility. Color-coded zones, green for safe, amber for caution, red for critical, let operators judge a condition without reading numbers at all.

Font and Character Legibility

Clear, appropriately sized numerals and clean typefaces make values easy to read at a glance and at a distance. Cramped or decorative fonts slow reading and invite errors.

Scale and Interval Design

Well-spaced tick marks and sensible intervals help the eye estimate a value quickly. Too many marks clutter the dial; too few make precise reading harder.

Layout, Shape, and Pointer

Research on dial design shows that circular and horizontal layouts with a moving pointer are generally easier to read than vertical layouts. The most important indicators, speed or a critical alert, should get the most prominent position and highest contrast.

Lighting and Glare Control

A gauge has to stay readable in direct sunlight, at night, and everywhere in between. Backlighting, anti-glare surfaces, and careful finish selection keep values visible without washing out or reflecting.

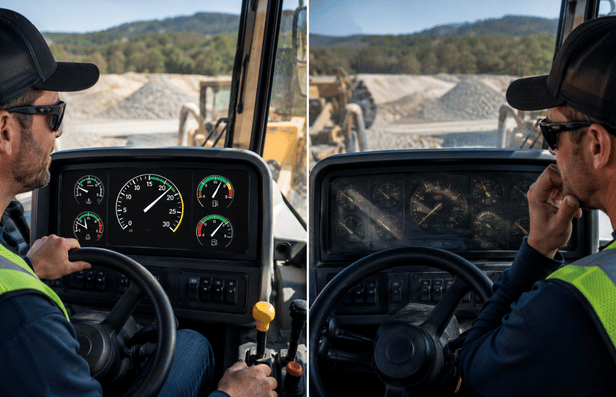

How Poor Readability Impacts Operators

When a dial or gauge is hard to read, the cost shows up in operator performance. Poorly designed clusters increase perceptual and cognitive demand, force the operator to divert their gaze longer, and raise the chance of misreading a value.

In a vehicle or on a machine, that means slower reactions, missed warnings, and decisions based on a misread number. Over a long shift, the extra effort also causes fatigue and reduced situational awareness, part of why gauge design is treated as a core human-machine interface concern.

Design Features That Improve Readability

A custom-manufactured dial or gauge can be engineered specifically for fast, accurate reading.

Backlighting

Adding LEDs to the circuitry makes key messages and alerts stand out and keeps the gauge readable in low light. It is one of the most effective ways to draw the operator's eye to what matters.

Embossing and Debossing

Raised (embossed) or recessed (debossed) text and graphics add tactile and visual emphasis, helping important markings stand out from the background.

Deadfronting

Deadfronting hides a message until it is backlit, so the display only shows information when it is relevant. It reduces clutter and is popular in marine and automotive instrument dials.

Specialty Inks and Color Coding

Specialty inks allow precise brand and safety colors, plus metallic and gloss finishes, so safe, caution, and critical zones are instantly distinguishable.

UV Resistance and Durability

Gauges built to UV standards such as SAE J2020 keep their contrast and legibility over years of sun exposure, so readability does not fade with age.

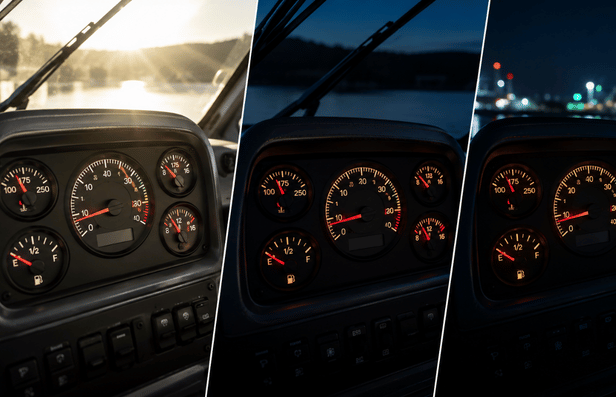

Readability Across Real Operating Environments

A gauge that reads well on a bench must also read well in the field.

• Direct sunlight: anti-glare finishes and high contrast prevent wash-out
• Nighttime and low light: backlighting keeps values visible without blinding the operator
• Vibration, distance, and glances: bold markings and clear pointers stay legible when there is no time for a second look


How Butler Technologies Designs Readable Dials and Gauges

At Butler Technologies, Inc. (BTI), custom instrument clusters, dials, and gauges are engineered so operators can read them fast and act with confidence. Designs are validated for legibility and durability and taken from concept through full-scale production.

Capabilities include:

• Custom speedometers, fuel, oil pressure, temperature, and odometer clusters
• Backlighting, embossing, debossing, deadfronting, and specialty inks
• High-contrast, color-coded designs for fast condition recognition
• UV-resistant construction tested to SAE J2020 for long-term legibility

To learn more about the components involved, see our guide to dials and gauges, or confirm your design with a design for manufacturability review.

Designing an instrument cluster that operators can read at a glance? Request a quote from Butler Technologies.

Frequently Asked Questions (FAQs)

Why does dial and gauge readability matter for operators?

Readability determines how quickly and accurately an operator can read a value and decide what to do. A readable gauge supports fast, correct decisions, while a hard-to-read one causes delay, misreads, and safety risks.

What makes a gauge easy to read?

Strong contrast and color coding, clear and appropriately sized fonts, well-spaced scale intervals, a circular or horizontal layout with a clear pointer, and good lighting or backlighting all make a gauge easier to read at a glance.

How does poor readability affect decision-making?

Poor readability increases perceptual and cognitive demand, forces the operator to look longer, and raises the chance of misreading a value. That leads to slower reactions, missed warnings, and decisions based on the wrong number.

How does backlighting improve gauge readability?

Backlighting adds LEDs to the gauge circuitry, so key messages and alerts stand out and remain visible in low light, drawing the operator's eye to the most important information.

What is deadfronting and how does it help readability?

Deadfronting hides a message until it is backlit, so the display only shows information when it is relevant. This reduces clutter and improves focus, which is why it is popular in marine and automotive instrument dials.

How do you design a readable instrument cluster?

Start with strong contrast and color coding, legible fonts, and a clear scale and pointer, then add backlighting, embossing, or deadfronting where needed, and validate the design for legibility and UV durability before production
