Summary

Analog dials and digital displays both play a critical role in industrial interface design, but choosing the right one can significantly impact usability, reliability, and operator efficiency. Understanding when simplicity outperforms advanced screens helps engineers design more effective control systems.

In this blog, you’ll learn:

• The key differences between analog dials and digital displays
• How each interface works and where it performs best
• Design and usability trade-offs in industrial environments
• When analog simplicity is more effective than digital precision
• How to choose the right display for your application

Analog and digital interfaces each offer unique strengths, and selecting the right one can improve readability, response time, and overall system performance across industrial applications.

In today’s industrial landscape, digital displays dominate control panels, dashboards, and human-machine interfaces. They offer precision, customization, and seamless integration with modern systems.

However, analog dials continue to remain essential in many applications. The reason is simple: operators often need speed, clarity, and reliability more than complexity.

Choosing between analog and digital is not just about technology. It is about how humans interpret information under real-world conditions.

What Are Analog Dials and Digital Displays?

Analog Dials

Analog dials use a needle and a calibrated scale to represent values visually. Instead of reading numbers, operators interpret position, direction, and movement, making them one of the most intuitive interface types in industrial design.

To understand how dials and gauges fit into broader system design, read our guide on what dials and gauges are and the role they play across industrial environments.

Common examples include:

• Speedometers
• Fuel gauges
• Pressure and temperature indicators

Digital Displays

Digital displays present numeric or graphical data using LCD, LED, or touchscreen interfaces.

Common examples include:

• HMI control panels
• Digital dashboards
• Automated system displays

How Each Interface Works

Analog Dials

• Mechanical or electromechanical system
• Continuous real-time movement
• Instant visual response
• No processing delay

Digital Displays

• Sensor input converted into electrical signals
• Processed through controllers
• Displayed as numbers or graphics
• May introduce slight latency

Analog vs Digital Display Comparison

Readability

• Analog: Quick interpretation through position
• Digital: Requires reading and processing numbers

Response Speed

• Analog: Immediate visual feedback
• Digital: Slight delay due to processing

Precision

• Analog: Relative measurement
• Digital: Exact numerical values

Usability in Demanding Environments

• Analog: Easier to interpret under stress
• Digital: Requires focused attention

Complexity

• Analog: Simple and intuitive
• Digital: Feature-rich but more complex

Why Analog Dials Still Matter

Despite technological advancements, analog dials provide advantages that digital systems cannot fully replace.

• Instant visual recognition of trends
• Reduced cognitive load for operators
• Reliable performance in harsh environments
• No dependency on complex electronics
• Continuous feedback instead of static values

In safety-critical and time-sensitive environments, these advantages become essential.

When Digital Displays Are the Better Choice

Digital displays are critical when precision and system integration are required.

• High-accuracy measurements
• Data logging and analytics
• Multi-variable system monitoring
• Integration with automation systems
• Customizable user interfaces

For applications requiring touch-based interaction, read our guide on types of touch screens to find the right option for your system.

Readability in Analog vs Digital Displays

The difference lies in how humans process information:

• Analog displays show patterns and movement
• Digital displays show exact values

In high-pressure environments:

• Analog improves decision speed
• Digital improves measurement accuracy

This makes analog ideal for quick response systems and digital ideal for detailed analysis.

Design Considerations for Industrial Display Interfaces

Choosing the right user interface depends on real-world operating conditions.

Key Factors

• Operating environment (temperature, vibration, dust)
• User interaction (gloves, visibility, distance)
• Decision speed requirements
• System complexity
• Maintenance and reliability

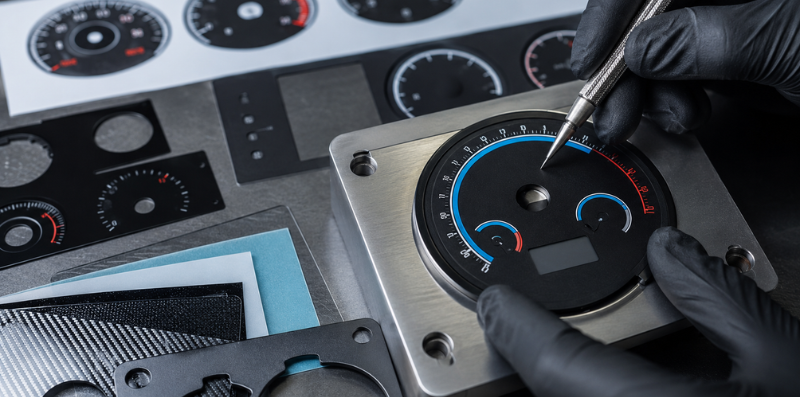

Design Enhancements in Modern Dials & Gauges

Modern dial and gauge designs go beyond basic functionality by incorporating advanced features that improve usability and durability.

• Backlighting: Enhances visibility and highlights alerts in low-light environments
• Embossing and Debossing: Improves tactile feedback and visual clarity on overlays
• Deadfronting: Keeps messages hidden until illuminated, reducing clutter
• Specialty Inks: Supports branding while improving readability and durability

These enhancements ensure that dials and gauges remain effective even in harsh industrial and automotive environments.

Among these enhancements, backlighting is especially critical in low-light or high-alert environments. Our guide on how backlighting enhances user interfaces in harsh environments covers the key techniques and how to select the right approach for your application.

When to Use Analog Dials vs Digital Displays

Choose Analog Dials If:

• Quick visual interpretation is critical
• Operators cannot focus continuously on displays
• The environment is harsh or high-stress
• Trend monitoring is more important than exact values

Choose Digital Displays If:

• Precision and exact readings are required
• Data tracking and system integration are needed
• Multiple variables must be monitored simultaneously
• Custom UI and automation are priorities

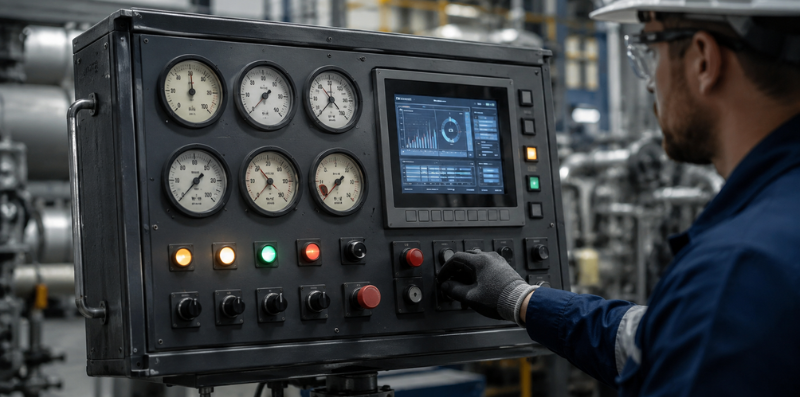

Hybrid Approach

Many modern systems combine both:

• Analog for quick reference
• Digital for precision and control

This approach delivers the best balance between usability and functionality.

Applications Across Industries

Analog Dials

• Automotive dashboards
• Aerospace systems
• Heavy equipment controls
• Industrial monitoring systems

Digital Displays

• HMI interfaces
• Medical devices
• Automated manufacturing systems
• Smart control panels

Common Mistakes to Avoid

• Choosing digital displays only for modern appeal
• Ignoring operator usability and environment
• Overcomplicating simple systems
• Using analog where precision is critical
• Not considering durability and environmental exposure

Key Takeaways

• Analog dials provide instant visual feedback, making them ideal for quick decision-making and real-time monitoring
• Digital displays offer high precision and data control, suited for complex and data-driven systems
• Analog interfaces perform
• better in harsh, fast-paced, or distraction-heavy environments
• Digital systems excel in automation, integration, and multi-variable control
• Design features like backlighting, embossing, deadfronting, and specialty inks enhance usability and visibility
• The right choice depends on application, environment, and operator interaction
• Hybrid designs often deliver the best overall performance

How We Help at Butler Technologies

At Butler Technologies, we work with engineers to design dials and gauges that prioritize clarity, speed, and reliability in real-world environments.

For applications where quick visual interpretation is critical, we develop custom instrument clusters and analog-style interfaces used across automotive, aerospace, and industrial systems. These designs help operators quickly identify key metrics such as speed, pressure, and temperature without relying on complex displays.

To improve usability and performance, we incorporate design features such as:

• Backlighting for enhanced visibility and alerts
• Embossing and debossing for better tactile and visual recognition
• Deadfronting to reveal information only when needed

By focusing on both functionality and user experience, we help ensure your interface delivers clear, reliable feedback when it matters most.

Frequently Asked Questions (FAQs)

What is the difference between analog dials and digital displays?

Analog dials show values through needle position, while digital displays provide exact numerical readings.

When should I use analog dials instead of digital displays?

Use analog dials when quick interpretation, low cognitive load, and real-time monitoring are required.

Are digital displays more accurate than analog dials?

Yes, digital displays provide precise numerical values, while analog dials provide relative readings.

Why are analog gauges still used in industrial systems?

They offer fast readability, reliability, and ease of use in demanding environments.

Can analog and digital displays be used together?

Yes, hybrid systems combine analog clarity with digital precision for better performance.
