A printed electronic device does not begin at the press. It begins at the design stage, where a functional idea is translated into a set of materials, layers, and printable geometries that a factory can reproduce consistently, thousands of times over. That translation is engineering design, and it is where most of a product’s cost, reliability, and manufacturability are quietly decided.

For OEMs and product teams moving from a working concept toward a real, repeatable part, understanding engineering design in printed electronics is what separates a prototype that works once from a product that works every time. It is also the stage where the right decisions save the most money, because a problem caught in design costs a fraction of the same problem caught in production.

Quick answer: Engineering design in printed electronics is the process of turning a functional concept into a manufacturable printed circuit. It covers the electrical schematic, the physical layout of conductive and dielectric layers, material and ink selection, tolerance and design-for-manufacturing decisions, and validation through prototyping, so the finished part performs as intended and can be produced repeatably at scale.

What Engineering Design Actually Covers

Engineering design is not a single step but a connected set of decisions, each of which constrains the next. In printed electronics the discipline is formalised in IPC-2292A, the design standard for printed electronics on flexible substrates, and it typically includes:

• The electrical schematic, defining what the circuit has to do
• The physical layout of traces, pads, and functional layers
• Material and ink selection matched to performance and environment
• Substrate choice, such as polyester or polyimide
• Tolerance definition for print registration and feature size
• Design for manufacturing, so the layout suits the actual process
• Validation and iteration through prototyping

Each of these interacts with the others. A material choice changes the achievable tolerances; a tolerance decision changes what layout is possible; the layout determines whether the part can be printed efficiently at all.

The output of this process is a physical part: a membrane switch circuit layer, a touch screen sensor, a printed heater or biometric electrode array. The design decisions above are what determine whether that part can be made repeatably or only once.

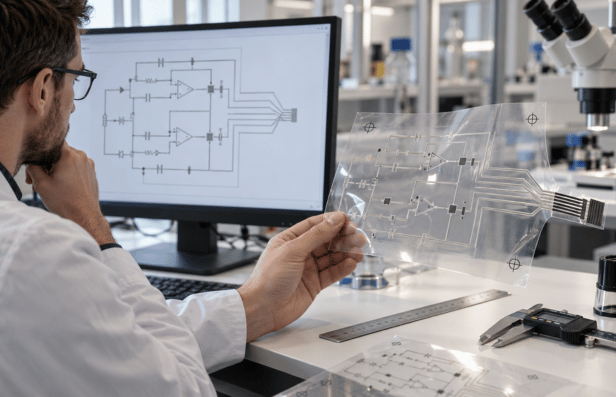

From Schematic to Printable Layout

The schematic answers what the circuit must do. The layout answers how it will physically exist on a flexible substrate. This is a bigger leap in printed electronics than in rigid PCBs, because printed conductors, dielectrics, and functional inks behave differently from etched copper.

A good layout accounts for the resolution the printing process can achieve, the spacing needed to avoid shorts, how inks spread slightly when deposited, and how the part will flex or fold in use. Getting this right is a specialised discipline, which is why it sits at the core of a dedicated design function rather than being treated as an afterthought before production.

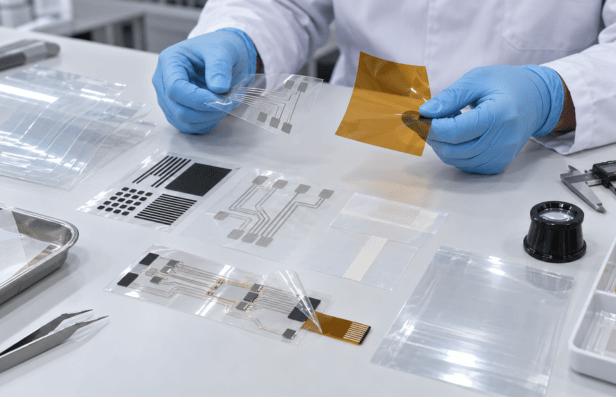

Material and Ink Selection

In printed electronics, the material set is part of the design, not a separate procurement task. Conductive inks, dielectric layers, substrates, and adhesives all have to be chosen together, because they must be compatible with each other, with the printing process, and with the operating environment.

• Conductive inks, such as silver or carbon, chosen for conductivity, flexibility, and cost
• Dielectric inks to insulate crossovers and layers
• Substrates selected for temperature range, flexibility, and durability
• Adhesives and encapsulants rated for the environment and lifecycle

A design that specifies the wrong ink for a flexing application, or a substrate that cannot survive the operating temperature, will fail regardless of how elegant the layout is.

Our printed silver circuit specifications sheet sets out the trace widths, spacings and tolerances achievable in production.

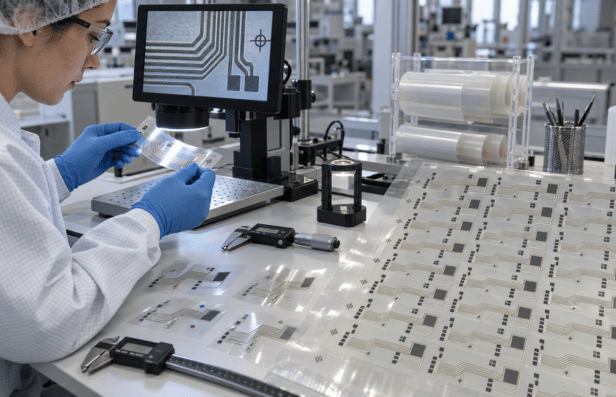

Design for Manufacturing: Where Most Value Is Created

Design for manufacturing, or DFM, is the point where engineering design earns its keep. A layout can be electrically perfect and still be slow, wasteful, or unreliable to produce. DFM adjusts the design so it aligns with the realities of the production line, print registration limits, panel utilisation, curing requirements, and handling.

This is also where design connects directly to the later stages of the product. A part designed with production in mind moves into full-scale production smoothly; a part designed in isolation often has to be re-engineered once it hits the floor. Our overview of design for full-scale production covers this handoff in more detail.

Validation Through Prototyping

Engineering design is not finished on paper. It is validated by building. Prototyping tests whether the design performs as intended and whether it can be made the way the design assumes, before committing to volume tooling and production runs.

This iterative loop- design, prototype, measure, refine- is where problems surface cheaply. Catching a registration issue or a material incompatibility during prototyping costs far less than discovering it after production tooling is committed.

How Butler Technologies Approaches Engineering Design

At Butler Technologies, Inc. (BTI), design and manufacturing are kept under one roof, so engineering decisions are made with the production process in view rather than in isolation.

BTI holds ISO 9001:2015 with Design and ISO 13485:2016 with Design, which means the design work itself sits inside the certified quality system rather than beside it. Design inputs, reviews, and verification are recorded rather than assumed.

Capabilities include:

• Layout and material selection for printed electronics
• Design for manufacturability review before tooling
• In-house prototyping to validate the design
• A connected path from concept through full-scale production

Not sure how to move your concept toward a manufacturable part? Request a quote from Butler Technologies, and our team will help you scope the design.

Frequently Asked Questions (FAQs)

What is engineering design in printed electronics?

It is the process of turning a functional concept into a manufacturable printed circuit, covering the schematic, physical layout, material and ink selection, tolerances, design for manufacturing, and validation through prototyping.

How is printed electronics design different from PCB design?

Printed electronics use deposited conductive and dielectric inks on flexible substrates rather than etched copper on rigid boards. That changes achievable resolution, spacing, material behaviour, and how the part flexes, so the design rules and material decisions are different.

Why is design for manufacturing important in printed electronics?

Because a layout can be electrically correct but slow, wasteful, or unreliable to produce. DFM aligns the design with the realities of the printing process, where most cost and reliability are determined.

What role does prototyping play in engineering design?

Prototyping validates that the design performs as intended and can be made the way the design assumes, surfacing problems cheaply before volume tooling and production are committed.
